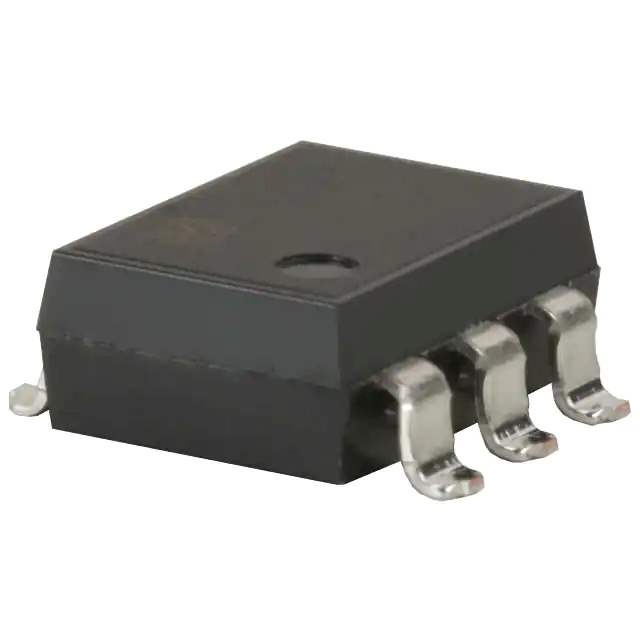

AQV414EHAX Real Image
Same model may have multiple batches, images only for reference.

AQV414EHAX

Part No AQV414EHAX
Manufacturer Panasonic
Catalog Solid State Relays
Description SSR RELAY SPST-NC 120MA 0-400V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Panasonic
Series PhotoMOS™ AQV
Package Tape & Reel
Product Status Active
Mounting Type Surface Mount
Circuit SPST-NC (1 Form B)
Output Type AC, DC
Voltage - Input 1.14VDC
Voltage - Load 0 V ~ 400 V
Load Current 120 mA
On-State Resistance (Max) 50 Ohms
Termination Style Gull Wing
Package / Case 6-SMD (0.300", 7.62mm)
Supplier Device Package 6-SMD
Base Product Number AQV414
Standard Package 1,000 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.49.0055
Win Source Part Number 564377-AQV414EHAX
Ultra Librarian 3D Model Ultra Librarian AQV414EHAX CAD Model

Description

The Panasonic PhotoMOS AQV series is a range of solid-state relays designed for various electronic switching applications.

  • Manufacturer: Panasonic
  • Relay: AQV414EHAX
  • Circuit: SPST-NC (1 Form B)
  • Load Current: 120 mA
  • Voltage Load Range: 0 V to 400 V
  • Termination Style: Gull Wing
  • Package: Tape & Reel
  • Standard Package Size: 1,000 pcs
  • Mounting: Surface Mount
  • On-State Resistance: 50 Ohms
  • Status: Active
  • Series: PhotoMOS AQV
