Same model may have multiple batches, images only for reference.

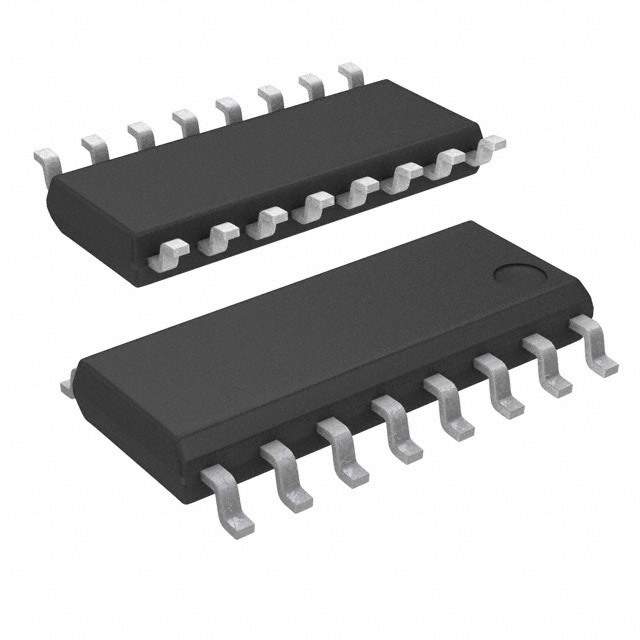

AQS225R2SZ Real Image
Same model may have multiple batches, images only for reference.

AQS225R2SZ

Part No AQS225R2SZ
Manufacturer Panasonic
Catalog Solid State Relays
Description SSR RELAY SPST-NO 70MA 0-80V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Panasonic Electric Works
Packaging Reel
Mounting Style SMD
Circuit SPST-NO (1 Form A) x 4
Output Type AC, DC (RF)
Voltage - Input 1.14VDC
Voltage - Load 0V ~ 80V
Load Current 70mA
On-State Resistance (Maximum) 15 Ohms
Termination Style Gull Wing
Manufacturer Package 16-SOIC
Supplier Device Package 16-SOP
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 814475-AQS225R2SZ
Ultra Librarian 3D Model Ultra Librarian AQS225R2SZ CAD Model

Description

The AQS225R2SZ is a solid state relay from Panasonic Electric Works.

  • Applications: High voltage
  • Load Current: 70mA
  • Supply and Demand Status: Limited
  • Popularity: Low
