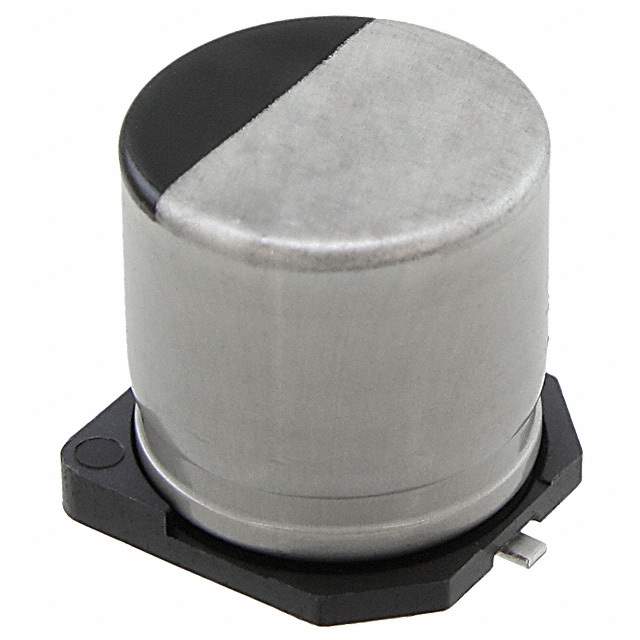

Same model may have multiple batches, images only for reference.

EEH-ZC1K470P

Name: EEH-ZC1K470P
Brand: Panasonic
SKU: 1329294
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	EEH-ZC1K470P
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY HYB 47UF 80V SMD / 47 µF 80 V Aluminum - Polymer Capacitors Radial, Can - SMD 36mOhm 4000 Hrs @ 125°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum - Polymer Capacitors
Manufacturer	Panasonic Electronic Components
Packaging	Reel - TR
Type	Hybrid
Capacitance	47 µF
Tolerance	±20%
Voltage - Rated	80 V
ESR (Equivalent Series Resistance)	36mOhm
Lifetime @ Temp.	4000 Hrs @ 125°C
Temperature Range - Operating	-55°C ~ 125°C
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	204 mA @ 100 Hz
Ripple Current @ High Frequency	1.36 A @ 100 kHz
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.413" (10.50mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting	Surface Mount
Case / Package	Radial, Can - SMD
Base Product Number	EEH-ZC
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Part Number	P19320CT,P19320DKR,EEHZC1K470P,P19320TR
Standard Package	500
Win Source Part Number	1329294-EEH-ZC1K470P
Ultra Librarian 3D Model	Ultra Librarian EEH-ZC1K470P CAD Model

Description

The capacitor is a high-quality hybrid capacitor designed for automotive applications from Panasonic Electronic Components.

Capacitance: 47 µF
Voltage Rating: 80 V
AEC-Q200: Rated
Tolerance: ±20%
ESR: 36mOhm
Ripple Current: 204 mA @ Low frequency and 1.36 A @ High frequency
Lifetime: 4000 hours @ 125°C
Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
Case/Package: Radial, can - SMD
Temperature Range: -55°C to 125°C
ROHS3: Compliant
REACH: Unaffected
