Same model may have multiple batches, images only for reference.

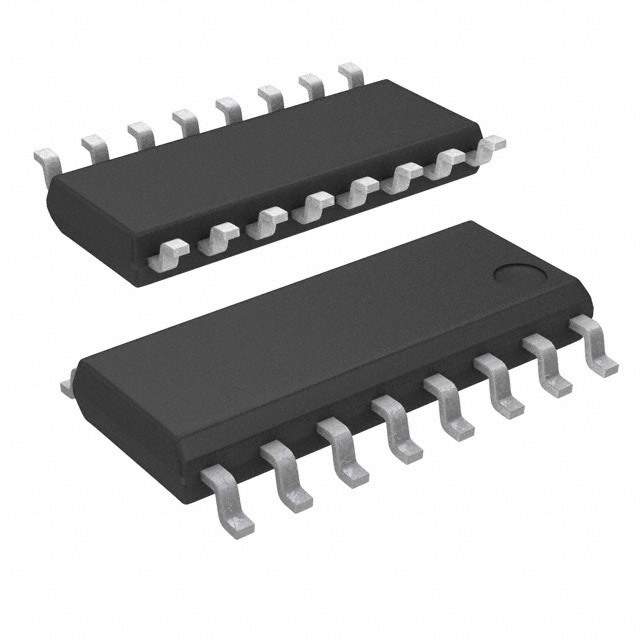

AQS210TS Real Image
Same model may have multiple batches, images only for reference.

AQS210TS

Part No AQS210TS
Manufacturer Panasonic
Catalog Solid State Relays
Description SSR RELAY DPST-NO 100MA 0-350V / Solid State DPST-NO (2 Form A) x 2 16-SOIC (0.173", 4.40mm Width)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Solid State Relays
Manufacturer Panasonic Electric Works
Packaging Tube
Product Status Obsolete
Mounting Surface Mount
Circuit DPST-NO (2 Form A) x 2
Output Type AC, DC
Voltage - Input 1.14VDC
Voltage - Load 0 V ~ 350 V
Load Current 100 mA
On-State Resistance (Max) 25 Ohms
Termination Style Gull Wing
Case / Package 16-SOIC (0.173", 4.40mm Width)
Supplier Device Package 16-SOP
Base Product Number AQS210
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Other Part Number 255-2104-5,AQS210TS-NDR,AQS210TS-ND
Standard Package 50
Win Source Part Number 1323753-AQS210TS
Ultra Librarian 3D Model Ultra Librarian AQS210TS CAD Model

Description

The AQS210TS from Panasonic Electric Works is a solid-state relay with a DPST-NO (2 Form A) x 2 circuit configuration.

  • Circuit Configuration: DPST-NO (2 Form A) x 2
  • Maximum On-State Resistance: 25 Ohms
  • Load Current: 100 mA
  • Input Voltage: 1.14VDC
  • Output Voltage: 0 V to 350 V
  • Mounting Type: Surface-mounted
  • Package: 16-SOP
  • Status: Obsolete
  • MSL Level: 2A (4 weeks)
