Same model may have multiple batches, images only for reference.

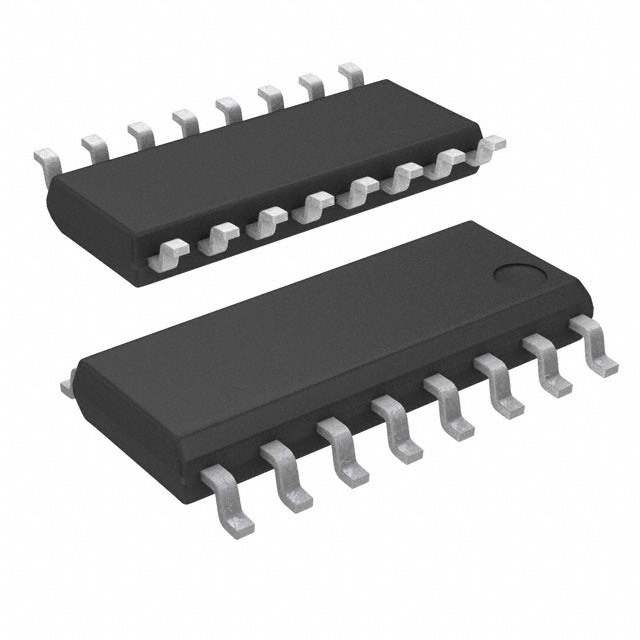

AQS210PSZ Real Image
Same model may have multiple batches, images only for reference.

AQS210PSZ

Part No AQS210PSZ
Manufacturer Panasonic
Catalog Solid State Relays
Description SSR RELAY SPST-NO 120MA 0-350V / Solid State SPST-NO (1 Form A) 16-SOIC (0.173", 4.40mm Width)
Datasheet
AQS210PSZ Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Panasonic
Series PhotoMOS™ AQS
Package Tape & Reel
Product Status Obsolete
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.14VDC
Voltage - Load 0 V ~ 350 V
Load Current 120 mA
On-State Resistance (Max) 25 Ohms
Termination Style Gull Wing
Package / Case 16-SOIC (0.173", 4.40mm Width)
Supplier Device Package 16-SOP
Base Product Number AQS210
Standard Package 1,000 pcs
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 911672-AQS210PSZ
Ultra Librarian 3D Model Ultra Librarian AQS210PSZ CAD Model

Description

The Panasonic AQS210PSZ is a solid state relay from the PhotoMOS™ AQS series.

  • Voltage Input: 1.14VDC
  • Output Type: AC/DC
  • Circuit Configuration: SPST-NO
  • On-State Resistance: 25 Ohms
  • Load Current: 120 mA
  • Voltage Load: 0 V to 350 V
  • Mounting: surface mount
  • Package: tape & reel
  • Package: 16-SOIC
