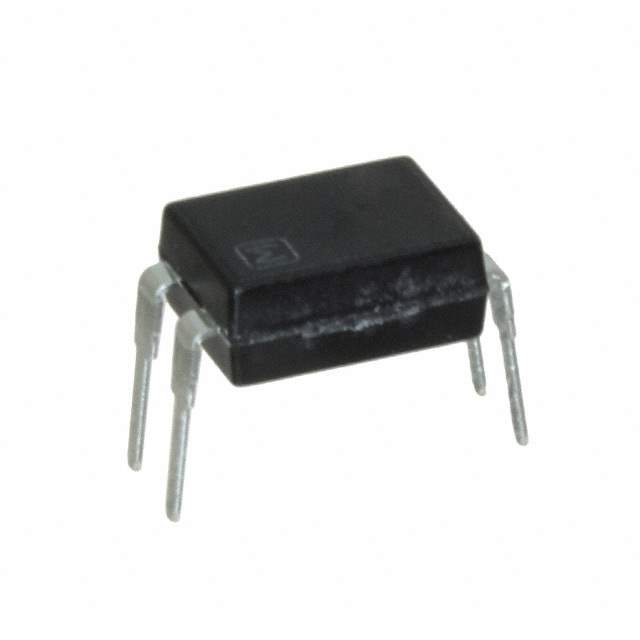

APT1231 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Panasonic Electric Works
Packaging Tube
Output Type Triac
Zero Crossing Circuit Yes
Voltage - Isolation 3750Vrms
Voltage - Off State 600V
Static dV/dt (Minimum) 500V/μs
Current - LED Trigger (Ift) (Maximum) 10mA
Current - On State (It (RMS)) (Maximum) 50mA
Current - Hold (Ih) 3.5mA
Turn On Time 100μs (Maximum)
Voltage - Forward (Vf) 1.21V
Current - DC Forward (If) (Maximum) 50mA
Temperature Range - Operating -40°C ~ 100°C
Mounting Style Through Hole
Manufacturer Package 4-DIP
Supplier Device Package 4-DIP
Approvals cUR, VDE
Manufacturer Pack Quantity 100
MSL Level Not Applicable
Win Source Part Number 1146609-APT1231
Manufacturer Homepage www.panasonic.com/industrial/
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian APT1231 CAD Model

Description

The APT1231 is a triac output optocoupler manufactured by Panasonic Electric Works.

  • Off-State Voltage: 600V
  • Isolation Voltage: 3750Vrms
  • Zero-Crossing Circuit: Yes
  • Package: 4-DIP
  • Operating Temperature: -40°C to 100°C
  • Maximum Turn-On Time: 100μs
  • Maximum Current On State: 50mA
  • Approvals: cUR and VDE
  • Suitable for: A wide range of industrial and consumer applications
