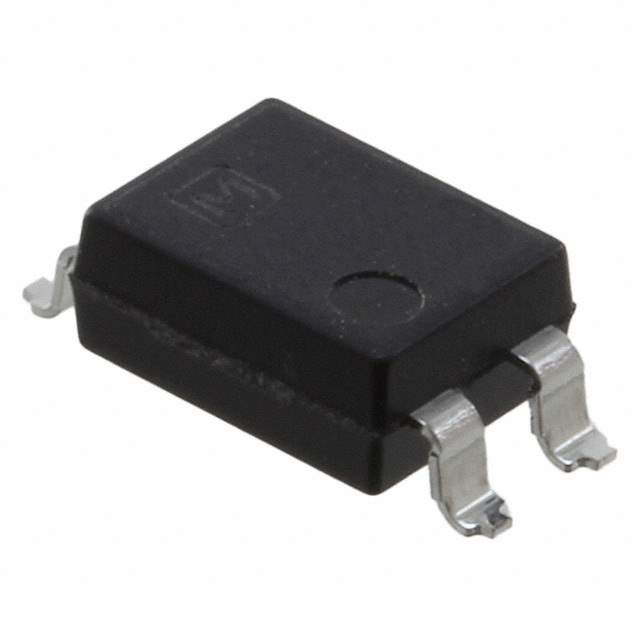

APT1221A Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Panasonic Electric Works
Packaging Tube
Output Type Triac
Zero Crossing Circuit No
Voltage - Isolation 5000Vrms
Voltage - Off State 600V
Static dV/dt (Minimum) 500V/μs
Current - LED Trigger (Ift) (Maximum) 10mA
Current - On State (It (RMS)) (Maximum) 100mA
Current - Hold (Ih) 3.5mA
Turn On Time 100μs (Maximum)
Voltage - Forward (Vf) 1.21V
Current - DC Forward (If) (Maximum) 50mA
Temperature Range - Operating -40°C ~ 100°C
Mounting Style SMD
Manufacturer Package 4-SMD, Gull Wing
Supplier Device Package 4-SMD
Approvals cUR, VDE
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Win Source Part Number 1146607-APT1221A
Manufacturer Homepage www.panasonic.com/industrial/
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian APT1221A CAD Model

Description

The Panasonic Electric Works APT1221A is a 4-SMD triac isolator with a voltage off state of 600V and a voltage isolation of 5000Vrms.

  • Voltage Off State: 600V
  • Voltage Isolation: 5000Vrms
  • Current Hold: 3.5mA
  • Current On State (It (RMS)) (Maximum): 100mA
  • Zero Crossing Circuit: No
  • Turn On Time: 100μs (Maximum)
  • Static dV/dt (Minimum): 500V/μs
  • Current LED Trigger (Ift) (Maximum): 10mA
  • Applications: Motor control, lighting control, and power supplies
  • Package: Tube
  • Operating Temperature: -40°C to 100°C
  • Approvals: cUR and VDE
  • Alternatives: VOM3053T, APT1221WA, and APT1221AX
