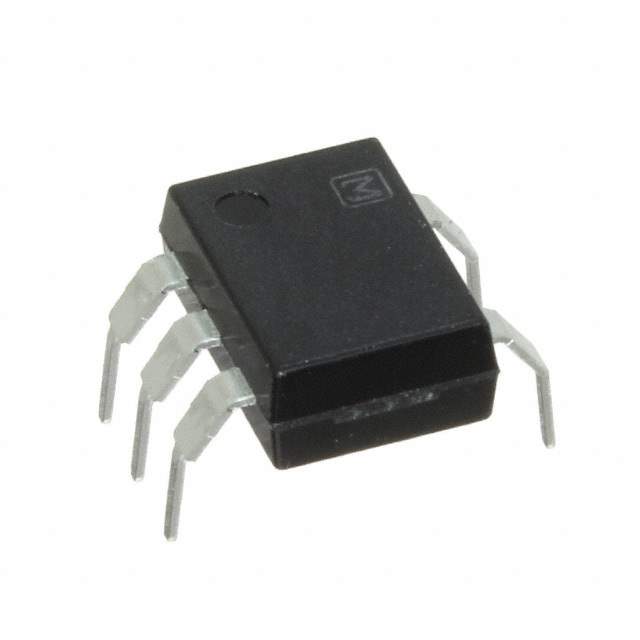

APT1212W Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Isolators>Optoisolators - Triac, SCR Output
Mfr Panasonic Electric Works
Series APT
Package Tube
Output Type Triac
Zero Crossing Circuit Yes
Number of Channels 1
Voltage - Isolation 5000Vrms
Voltage - Off State 600 V
Static dV/dt (Min) 500V/µs
Current - LED Trigger (Ift) (Max) 10mA
Current - On State (It (RMS)) (Max) 100 mA
Current - Hold (Ih) 3.5mA
Turn On Time 100µs (Max)
Voltage - Forward (Vf) (Typ) 1.21V
Current - DC Forward (If) (Max) 50 mA
Temperature Range - Operating -40°C ~ 100°C
Mounting Type Through Hole
Package / Case 6-DIP (0.400", 10.16mm), 5 Leads
Supplier Device Package 6-DIP
Approval Agency cUR, VDE
Base Product Number APT1212
MSL Level Not Applicable
ECCN EAR99
HTSUS 8541.49.8000
Other Names 255-5950,APT1212W-ND,-APT1212W-ND
Standard Package 50
Win Source Part Number 992050-APT1212W
Ultra Librarian 3D Model Ultra Librarian APT1212W CAD Model

Description

The APT1212W is a Triac output optocoupler designed for use in applications requiring isolated triac control.

  • Function: Zero voltage crossing bilateral triac driver
  • Load Control: Resistive loads up to 100mA @ 600V
  • Isolation Voltage: 5000Vrms
  • Static dV/dt: 500V/μs
  • Package: 6-DIP (0.400", 10.16mm), 5 Leads
  • Temperature Range: -40°C to 100°C
  • Approvals: cUR and VDE
  • Ideal For: Solid-state relays, industrial controls, and motor controls
