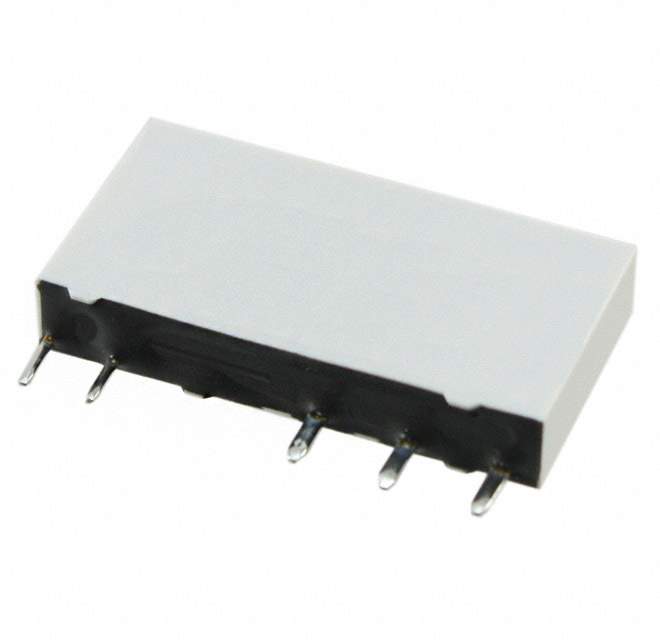

APF3034H Real Image
Same model may have multiple batches, images only for reference.

APF3034H

Part No APF3034H
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 6A 4.5V / General Purpose Relay SPDT (1 Form C) 4.5VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series APF
Package Tube
Mounting Type Through Hole
Coil Voltage 4.5VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 6 A
Switching Voltage 250VAC - Max
Coil Current 37.8 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 3.15 VDC
Must Release Voltage 0.225 VDC
Operate Time 8 ms
Release Time 4 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi), Gold (Au)
Relay Type General Purpose
Coil Resistance 119 Ohms
Base Product Number APF3034
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Other Names APF3034H-ND,255-4085-5
Standard Package 20
Win Source Part Number 1118265-APF3034H
Ultra Librarian 3D Model Ultra Librarian APF3034H CAD Model

Description

The APF3034H is a power relay manufactured by Panasonic Electric Works.

  • Manufacturer: Panasonic Electric Works
  • Contact Form: SPDT (1 Form C)
  • Contact Rating (Current): 6 A
  • Switching Voltage: 250VAC - Max
  • Coil Voltage: 4.5VDC
  • Coil Resistance: 119 Ohms
  • Coil Current: 37.8 mA
  • Mounting Type: Through Hole
  • Temperature Range: -40°C ~ 85°C
