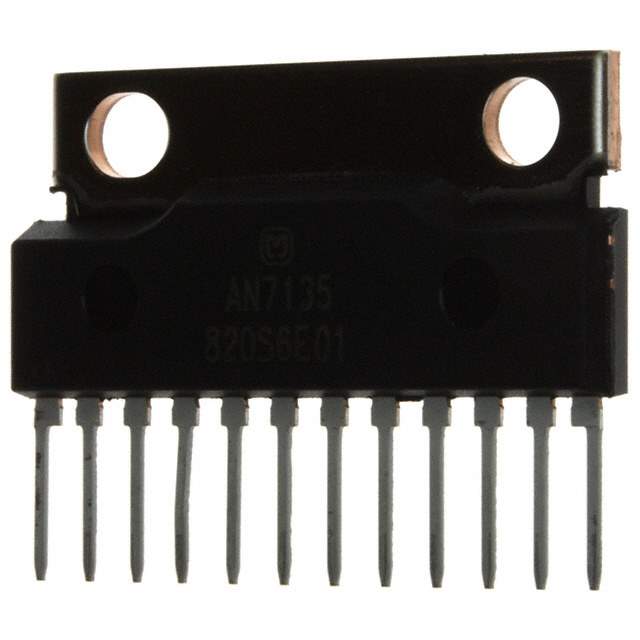

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Panasonic Electronic Components
Packaging Tube/Rail
Status Obsolete(EOL)
Type Class AB
Output Type 2-Channel (Stereo)
Max Output Power x Channels @ Load 7.5W x 2 @ 3 Ohm
Supply Voltage - Operating 5 V to 18 V
Features Standby, Thermal Protection
Mounting Through Hole
Temperature Range - Operating -30°C to 75°C (TA)
Case / Package 12-SIL
Dimension 12-SIP + Tab
Win Source Part Number 199045-AN7135
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian AN7135 CAD Model

Description

Description

The AN7135 IC is engineered for applications that require detailed and powerful sound reproduction. Known for its stability and efficiency, this audio amplifier is essential for ensuring premium audio output in cutting-edge audio equipment.

Features and Benefits

  • High efficiency with minimal power loss.
  • Durable design suitable for long-term usage.
  • Integrated circuitry for easy installation.
  • Comprehensive frequency response.

Applications/Projects

  • Advanced audio research projects
  • Professional studio audio equipment
  • PA (Public Address) systems
  • High-fidelity home music systems

Additional Details

The AN7135 is ideal for sound projects that demand high-precision technology and reliability, making it a preferred choice for both enthusiasts and professional sound engineers.
