Same model may have multiple batches, images only for reference.

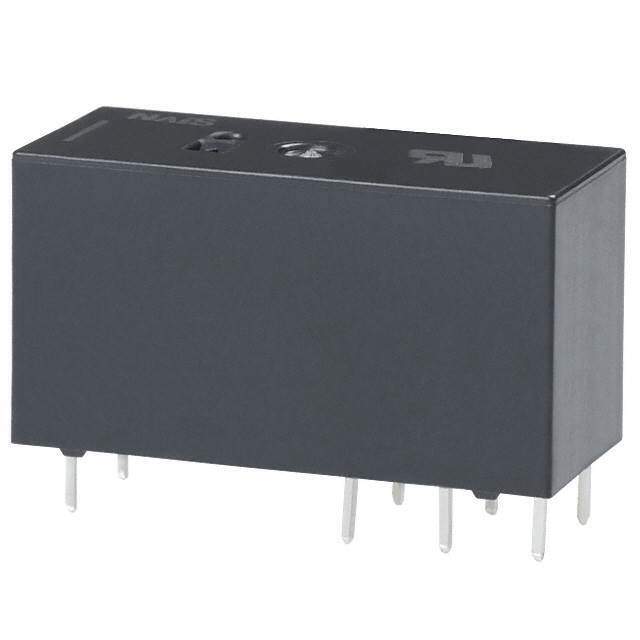

ALZ52B12 Real Image
Same model may have multiple batches, images only for reference.

ALZ52B12

Part No ALZ52B12
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 33.3mA
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16A
Switching Voltage 440VAC - Max
Turn On Voltage (Max) 8.4 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 15ms
Release Time 5ms
Features Insulation - Class B, Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 400 mW
Coil Resistance 360 Ohms
Temperature Range - Operating -40°C to 105°C
Win Source Part Number 053239-ALZ52B12
Popularity Medium
Supply and Demand Status Limited
Quantity per package 20
Ultra Librarian 3D Model Ultra Librarian ALZ52B12 CAD Model

Description

ALZ52B12 Relay Module

The ALZ52B12 is a high-performance relay module designed for precision control applications. With its compact design and robust functionality, this relay ensures reliable switching in various industrial and electronic environments.

  • Applications:
    • Home Automation Systems
    • Industrial Control Systems
    • Automated Test Equipment
  • Features and Benefits:
    • High Durability and Longevity
    • Efficient Power Consumption
    • Easy Installation and Integration
  • Additional Details:
    • Operational Voltage: 12V
    • Contact Rating: 10A at 250VAC
    • Sensitivity: Highly responsive to low signal input
