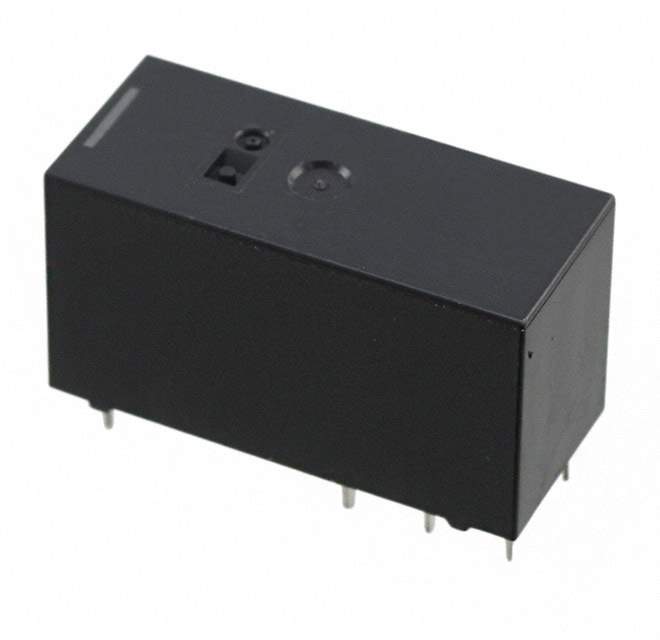

ALZ11B12 Real Image
Same model may have multiple batches, images only for reference.

ALZ11B12

Part No ALZ11B12
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description 16A Low Profile Power Relay | RELAY GEN PURPOSE SPDT 16A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube
Mounting Style Through Hole
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 16A
Switching Voltage 440VAC - Max
Coil Current 33.3mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class B
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.2 VDC
Operate Time 15ms
Release Time 5ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 360 Ohms
Manufacturer Pack Quantity 20
MSL Level 1 (Unlimited)
Win Source Part Number 1143364-ALZ11B12
Manufacturer Homepage 0
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ALZ11B12 CAD Model

Description

The Panasonic Electric Works ALZ11B12 is a general-purpose relay that has a contact rating (current) of 16A.

  • Contact Rating (Current): 16A
  • Switching Voltage: 440VAC - Max
  • Coil Voltage: 12VDC
  • Mounting Style: Through-Hole
  • Contact Form: SPDT (1 Form C)
