Part No AH1664-A
Manufacturer Panasonic
Catalog Snap Action, Limit Switches

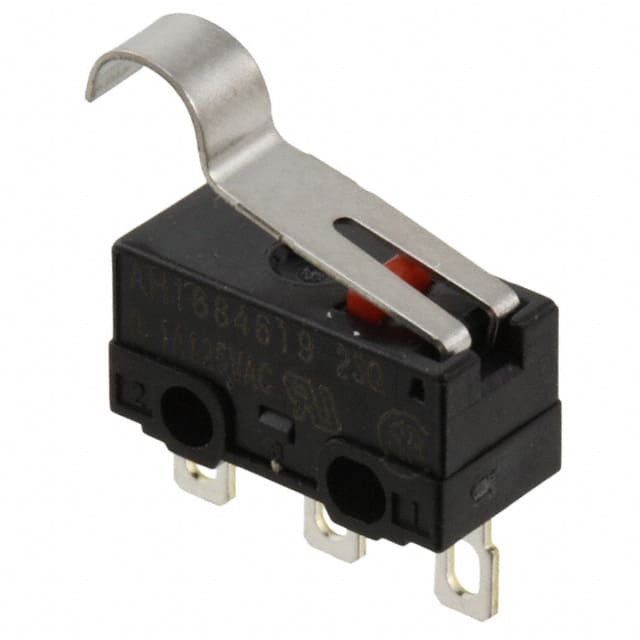

Description SWITCH SNAP ACTION SPDT 3A 125V / Switch SPDT Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Panasonic
Series AH1
Package Tube
Product Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 3A (AC), 2A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Simulated Roller
Mounting Type Chassis Mount
Termination Style Solder Lug
Operating Force 55gf
Release Force 4.079gf
Operating Position 0.374" (9.5mm)
Pretravel 0.083" (2.1mm)
Differential Travel 0.020" (0.5mm)
Overtravel 0.020" (0.5mm)
Temperature Range - Operating -25°C ~ 85°C
Electrical Life 30,000 Cycles
Mechanical Life 500,000 Cycles
Base Product Number AH1664
Standard Package 50 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 860735-AH1664-A
Ultra Librarian 3D Model Ultra Librarian AH1664-A CAD Model

Description

The AH1664-A is a SPDT limit switch from Panasonic's AH1 series.

  • Termination Style: Solder Lug
  • Voltage Rating: 125V AC, 30V DC
  • Operating Force: 55gf
  • Release Force: 4.079gf
  • Mechanical Life: 500,000 Cycles
  • Pretravel: 0.083" (2.1mm)
  • Mounting Type: Chassis Mount
  • Temperature Range: -25°C to 85°C
  • Series: AH1
  • Switch Type: SPDT
