Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube
Mounting Style Through Hole
Coil Voltage 4.5VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2A
Switching Voltage 125VAC, 110VDC - Max
Coil Current 31.0mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 3.38 VDC
Must Release Voltage 0.45 VDC
Operate Time 4ms
Release Time 4ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Palladium (AgPd), Gold (Au)
Relay Type Telecom
Coil Resistance 145 Ohms
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Win Source Part Number 1142936-AGQ2004H
Manufacturer Homepage 0
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AGQ2004H CAD Model

Description

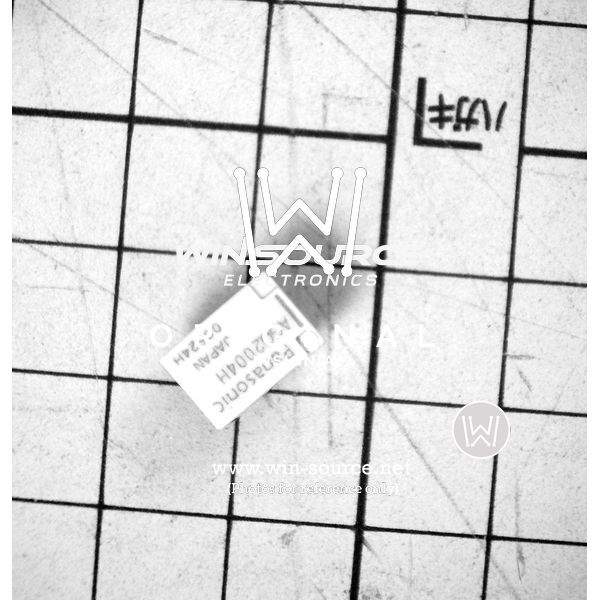

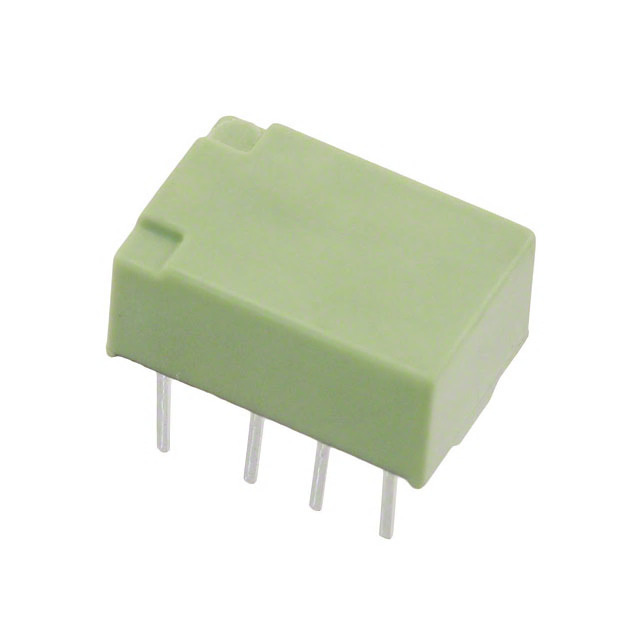

The AGQ2004H DPDT (2 Form C) telecom relay from Panasonic Electric Works is a through-hole mounted relay with a PC pin termination style.

  • Relay Type: DPDT (2 Form C) Telecom Relay
  • Mounting: Through-Hole
  • Termination Style: PC Pin
  • Contact Material: Silver Palladium (AgPd), Gold (Au)
  • Contact Rating (Current): 2A
  • Switching Voltage: 125VAC and 110VDC max
  • Coil Voltage: 4.5VDC
  • Coil Resistance: 145 Ohms
  • Coil Current: 31.0mA
  • Operate Time: 4ms
  • Release Time: 4ms
  • Coil Type: Non-Latching
  • Seal Rating: No Seal
  • Operating Temperature: -40°C to 85°C
  • Manufacturer Pack Quantity: 50
  • MSL Level: 1 (Unlimited)
  • Must Operate Voltage: 3.38 VDC
  • Must Release Voltage: 0.45 VDC
