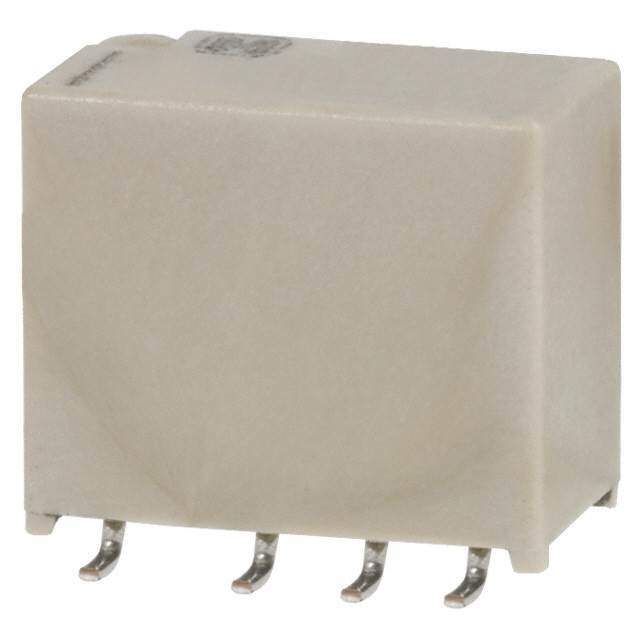

AGN210A4H Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube
Mounting Style SMD
Coil Voltage 4.5VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 1A
Switching Voltage 125VAC, 110VDC - Max
Coil Current 22.2mA
Coil Type Latching, Single Coil
Termination Style Gull Wing
Must Operate Voltage 3.38 VDC
Operate Time 4ms
Release Time 4ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Palladium (AgPd), Gold (Au)
Relay Type Telecom
Coil Resistance 203 Ohms
Manufacturer Pack Quantity 50
MSL Level 4 (72 Hours)
Win Source Part Number 1142933-AGN210A4H
Manufacturer Homepage 0
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian AGN210A4H CAD Model

Description

The Panasonic Electric Works AGN210A4H is a DPDT (2 Form C) telecom relay with a contact rating (current) of 1A and a switching voltage of 125VAC, 110VDC - Max.

  • Manufacturer: Panasonic Electric Works
  • Contact Rating (Current): 1A
  • Switching Voltage: 125VAC, 110VDC - Max
  • Coil Voltage: 4.5VDC
  • Coil Resistance: 203 Ohms
  • Coil Current: 22.2mA
  • Operate Time: 4ms
  • Relay Type: Latching, single coil
  • Mounting: SMD
  • Termination Style: Gull wing
  • Contact Material: Silver palladium (AgPd), gold (Au)
  • Category: Relays
  • Popularity: Medium
  • Manufacturer Pack Quantity: 50
  • MSL Level: 4 (72 Hours)
  • Temperature Range: -40°C to 85°C
