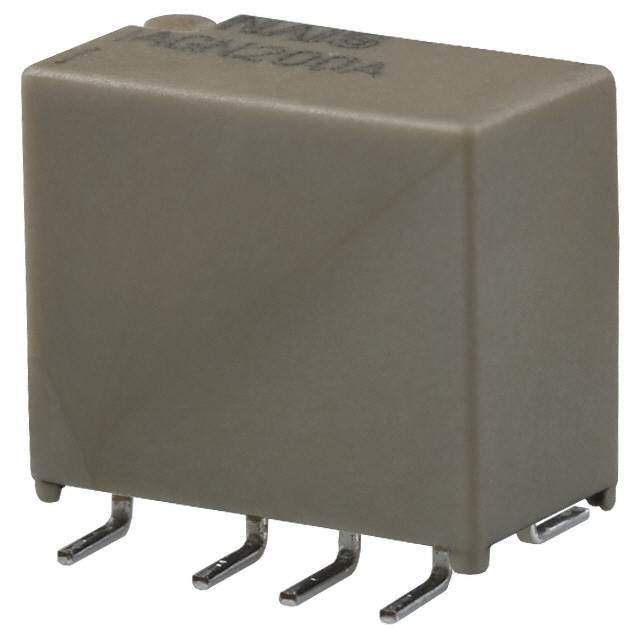

AGN200A12Z

Part No AGN200A12Z
Manufacturer Panasonic
Catalog HOT - SALES and EOL Components (0 - A)
Description Signal Relay 12VDC 1A DPDT(10.6x7.4x10)mm SMD / ULTRA-SMALL PACKAGE SLIM POLARIZED RELAY
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Panasonic
Operating Temp Range -40C to 85C
Pick-up Voltage (Max) 9VDC
Pin Count 8
Contact Form 2 Form C
Dropout Volt (Min) 1.2VDC
Rad Hardened No
Contact Arrangement DPDT
Termination Style Gull Wing
Mounting Style SMD/SMT
Packaging Tape and Reel
Type Ultra Small Slim Pol
Seal Sealed
Contact Material Silver Palladium
Voltage Rating (VAC) 125(V)
Voltage Rating (VDC) 110(V)
Coil Resistance 1028(ohm)
Product Length (mm) 10.6(mm)
Product Depth (mm) 7.4(mm)
Product Height (mm) 10(mm)
Coil Voltage DC 12V
Coil Current 11.7(mA)
Contact Current Rating 1(A)
Relay Construction Non-Latching
Operate Time 4(ms)
Coil Suppression Diode No
LED Indicator No
Push To Test Button No
Maximum Power Rating 30W/37.5VA
Dropout Volt 1.2VDC
Win Source Part Number 083726-AGN200A12Z
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 500
Family Name AGN
Introduction Date December 01, 2003
ECCN EAR99
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian AGN200A12Z CAD Model

Description

AGN200A12Z Relay Module

The AGN200A12Z relay module is designed for enhanced operational efficiency in complex electronic setups, offering maximum reliability in a small, compact form.

  • Applications:
    • Power Supply Units
    • Medical Equipment
    • Instrumentation
  • Features and Benefits:
    • Enhanced durability for demanding environments
    • Energy-efficient design
    • Compact size for easy installation
  • Additional Details:
    • Nominal coil voltage: 12V
    • Contact arrangements: 1 Form A
