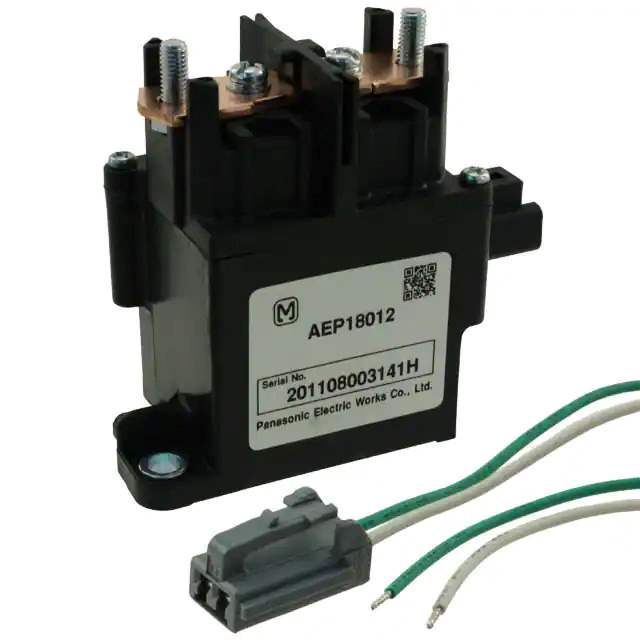

AEP18012 Real Image
Same model may have multiple batches, images only for reference.

AEP18012

Part No AEP18012
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY SPST 80A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series AEP
Package Bulk
Product Status Active
Mounting Type Chassis Mount
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 80 A
Switching Voltage 277VAC, 400VDC - Nom
Coil Current 375 mA
Coil Type Non Latching
Termination Style Stud
Seal Rating Sealed - Hermetically
Must Operate Voltage 9 VDC
Must Release Voltage 0.96 VDC
Operate Time 50 ms
Release Time 30 ms
Temperature Range - Operating -40°C ~ 80°C
Base Product Number AEP180
Standard Package 1 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 911181-AEP18012
Ultra Librarian 3D Model Ultra Librarian AEP18012 CAD Model

Description

The AEP18012 power relay from Panasonic is a reliable and high-performance component designed for demanding applications. It features a single-pole, single-throw normally open (SPST-NO) contact form, making it suitable for various switching applications.

  • Contact Form: SPST-NO
  • Coil Voltage: 12VDC
  • Coil Current: 375 mA
  • Contact Rating: 80 A
  • Seal Rating: Hermetically Sealed
  • Operating Temperature: -40°C to 80°C
  • Operate Time: 50 ms
  • Release Time: 30 ms
