Same model may have multiple batches, images only for reference.

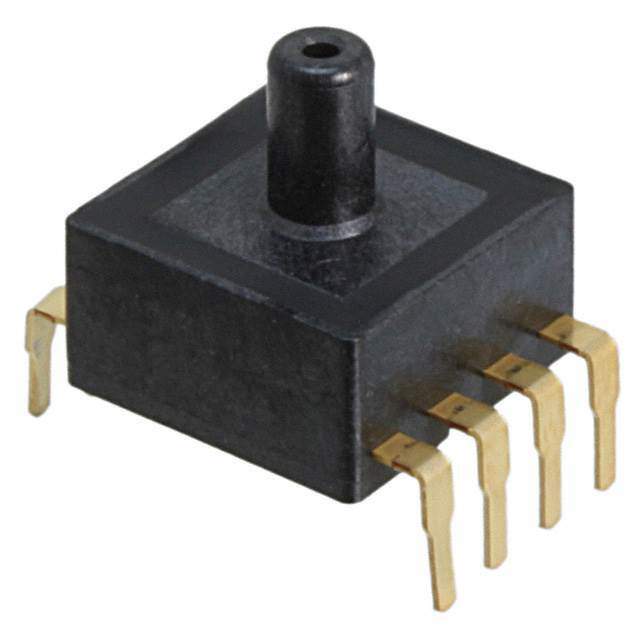

ADP5121 Real Image
Same model may have multiple batches, images only for reference.

ADP5121

Part No ADP5121
Manufacturer Panasonic
Catalog Pressure Sensors, Transducers
Description SENSOR PRESSURE 25KPA STD DIP / Pressure Sensor 3.63PSI (25kPa) Vented Gauge Male - 0.12" (3mm) Tube 0 V ~ 4.5 V 8-DIP Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Panasonic Electronic Components
Series PS-A
Package Bulk
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 3.63PSI (25kPa)
Output Type Analog Voltage
Output 0 V ~ 4.5 V
Accuracy ±1.25%
Voltage - Supply 5V
Port Size Male - 0.12" (3mm) Tube
Port Style Barbless
Features Amplified Output, Temperature Compensated
Termination Style PC Pin
Maximum Pressure 7.25PSI (50kPa)
Temperature Range - Operating -10°C ~ 60°C
Package / Case 8-DIP Module
Base Product Number ADP512
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Other Names 255-3797-ND,P17122,255-3797,ADP5121-ND
Standard Package 100
Win Source Part Number 1014600-ADP5121
Ultra Librarian 3D Model Ultra Librarian ADP5121 CAD Model

Description

The PS-A series pressure sensor from Panasonic Electronic Components is a high-performance sensor designed for board mount applications.

  • Pressure Type: Vented Gauge
  • Operating Pressure: 3.63PSI (25kPa)
  • Maximum Pressure: 7.25PSI (50kPa)
  • Output: Amplified
  • Temperature Compensation: Yes
  • Accuracy: ±1.25%
  • Output Type: Analog Voltage
  • Output Range: 0 V ~ 4.5 V
  • Port Size: Male - 0.12" (3mm) tube
  • Port Style: Barbless
  • Voltage Supply: 5V
  • Temperature Range: -10°C ~ 60°C
  • Package: 8-DIP module
  • Standard Package: 100 sensors
  • Ideal for: Pressure sensing applications that require high accuracy and reliability
