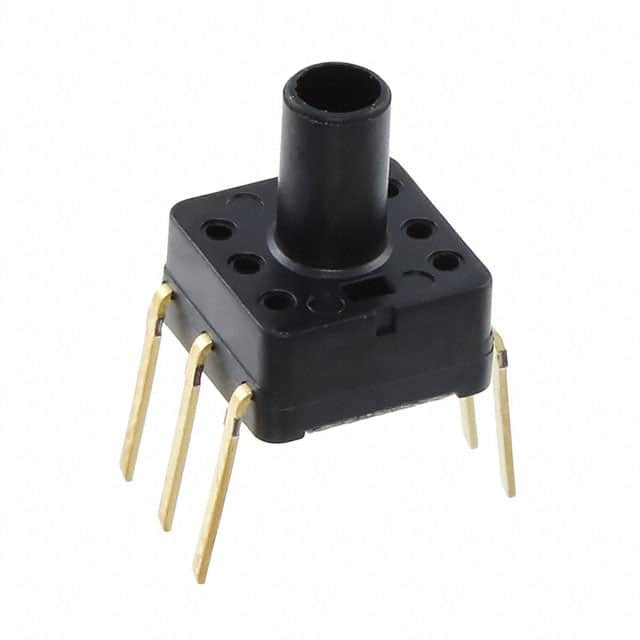

Same model may have multiple batches, images only for reference.
ADP5101
Same model may have multiple batches, images only for reference.

ADP5101

Part No ADP5101
Manufacturer Panasonic
Catalog Pressure Sensors, Transducers
Description SENSOR 14.5PSIG 0.12" 4.5V / Pressure Sensor ±14.5PSI (±100kPa) Vented Gauge Male - 0.12" (3mm) Tube 0 V ~ 4.5 V 6-DIP Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Pressure Sensors, Transducers
Mfr Panasonic
Series PS-A
Package Bulk
Product Status Active
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure ±14.5PSI (±100kPa)
Output Type Analog Voltage
Output 0 V ~ 4.5 V
Accuracy ±1.25%
Voltage - Supply 5V
Port Size Male - 0.12" (3mm) Tube
Port Style Barbless
Features Amplified Output, Temperature Compensated
Termination Style PC Pin
Maximum Pressure ±29.01PSI (±200kPa)
Temperature Range - Operating -10°C ~ 60°C
Mounting Type Through Hole
Package / Case 6-DIP Module
Base Product Number ADP510
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 860338-ADP5101
Ultra Librarian 3D Model Ultra Librarian ADP5101 CAD Model

Description

The ADP5101 is a pressure sensor designed for board mount applications.

  • Output: amplified output and temperature compensation
  • Output Type: analog voltage
  • Output Range: 0 V to 4.5 V
  • Accuracy: ±1.25%
  • Sensor Type: vented gauge pressure sensor
  • Pressure Range: ±14.5PSI (±100kPa)
  • Port Size: male - 0.12" (3mm) tube
  • Port Style: barbless port
  • Voltage Supply: 5V
  • Temperature Range: -10°C to 60°C
  • Manufacturer: Panasonic
  • Status: active product
  • Standard Package: 100 pcs
