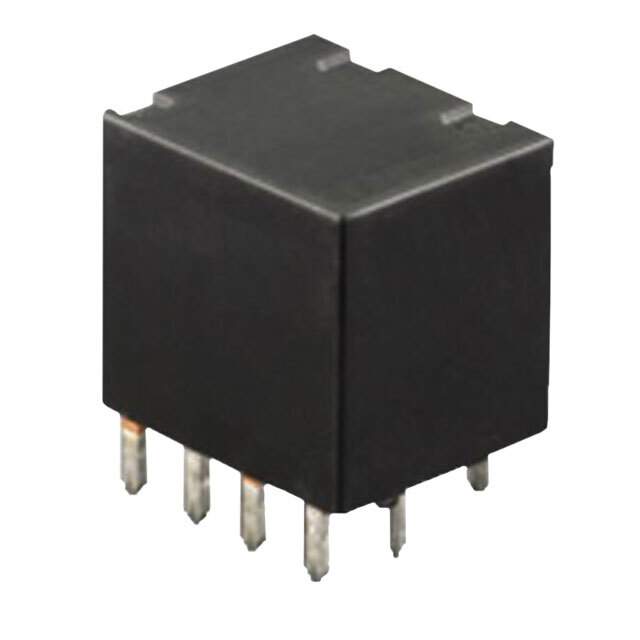

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Box
Coil Type Non Latching
Coil Current 53.3mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C) x 2
Contact Rating (Current) 20A
Switching Voltage 14VDC - Nom
Must Operate Voltage 7.2 VDC
Must Release Voltage 1 VDC
Operate Time 10ms
Release Time 10ms
Features Sealed - Fully
Mounting Style Through Hole
Termination Style PC Pin
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Alloy, Cadmium Free
Coil Power 640mW
Coil Resistance 225 Ohms
Manufacturer Pack Quantity 35
MSL Level 1 (Unlimited)
Win Source Part Number 1135261-ACJ5212
Manufacturer Homepage www.panasonic.com/industrial/
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ACJ5212 CAD Model

Description

The Panasonic Electric Works relay is a fully sealed SPDT (1 Form C) x 2 contact type relay with a contact rating of 20A and switching voltage of 14VDC.

  • Coil Voltage: 12VDC
  • Coil Resistance: 225 Ohms
  • Coil Current: 53.3mA
  • Coil Type: Non-Latching
  • Operate Time: 10ms
  • Release Time: 10ms
  • Mounting Style: Through-Hole
  • Termination Style: PC Pin
  • Contact Material: Silver alloy, cadmium-free
  • Operation Temperature: -40°C to 85°C
  • Popularity: Medium
  • Supply and Demand Status: Limited
