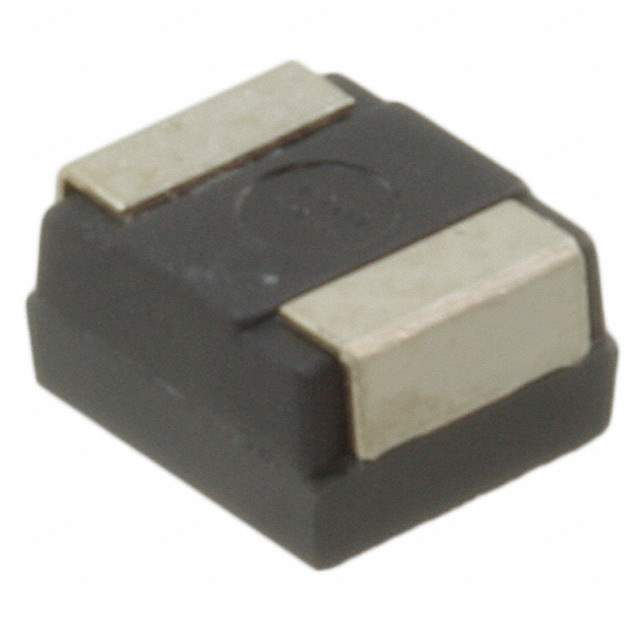

2TPE330MFB Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Series POSCAP TPE
Packaging Reel package
Capacitance 330μF
Tolerance ±20%
Voltage Rating DC 2V
Type Molded
ESR (Equivalent Series Resistance) 15 mOhm
Operating Temperature Range -55°C ~ 105°C
Mounting SMD
Package 1411 (3528 Metric)
Dimension 0.138" L x 0.110" W (3.50mm x 2.80mm)
Height - Seated (Maximum) 0.079" (2.00mm)
Manufacturer Size Code B2
Features General
Win Source Part Number 763044-2TPE330MFB
Family Name TPE
Introduction Date October 15, 2008
ECCN EAR99
Country of Origin Indonesia
Estimated EOL Date 2024
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian 2TPE330MFB CAD Model

Description

The Panasonic Electronic Components TPE330MFB is a POSCAP TPE series molded capacitor with a capacitance of 330uF and voltage rating of 2V.

  • Capacitance: 330uF
  • Voltage rating: 2V
  • ESR: 15 mOhm
  • Temperature range: -55°C to 105°C
  • Package: 1411 (3528 Metric)
  • Dimension: 0.138" L x 0.110" W (3.50mm x 2.80mm)
  • Supplied in: reel package
  • Quantity: 2k pcs per package
  • Supply and demand status: balance
