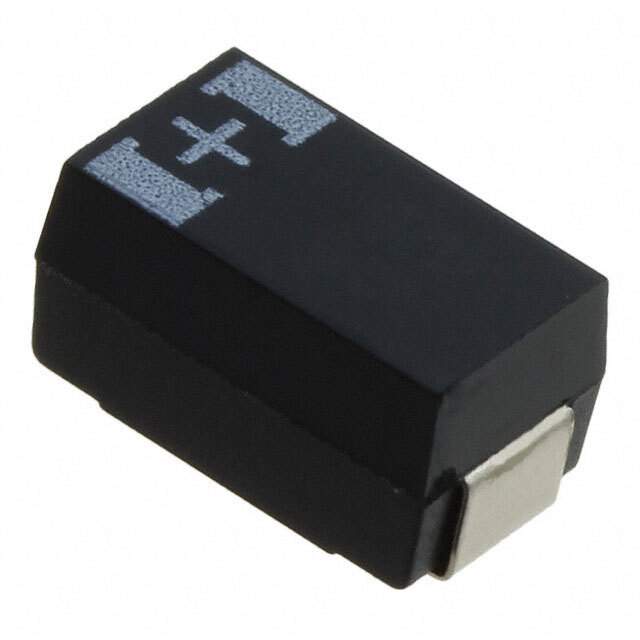

10THB220M Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Series POSCAP TH
Packaging Reel package
Capacitance 220μF
Tolerance ±20%
Voltage Rating DC 10V
Type Molded
ESR (Equivalent Series Resistance) 40 mOhm
Operating Temperature Range -55°C ~ 125°C
Lifetime @ Temp. 1000 Hrs @ 125°C
Mounting SMD
Package 2917 (7343 Metric)
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Maximum) 0.154" (3.90mm)
Manufacturer Size Code D4
Features General
Win Source Part Number 760184-10THB220M
Family Name TH
Introduction Date October 25, 2002
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2024
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 10THB220M CAD Model

Description

The Panasonic Electronic Components 760184-10THB220M is a molded type capacitor with a capacitance of 220μF and a tolerance of ±20%.

  • Series: POSCAP TH series
  • Package: reel package
  • Voltage rating DC: 10V
  • ESR: 40 mOhm
  • Operating temperature range: -55°C ~ 125°C
  • Lifetime @ temp: 1000 Hrs @ 125°C
  • Popularity: medium
  • Supply and demand status: limited
  • Suitable for: various electronic applications
