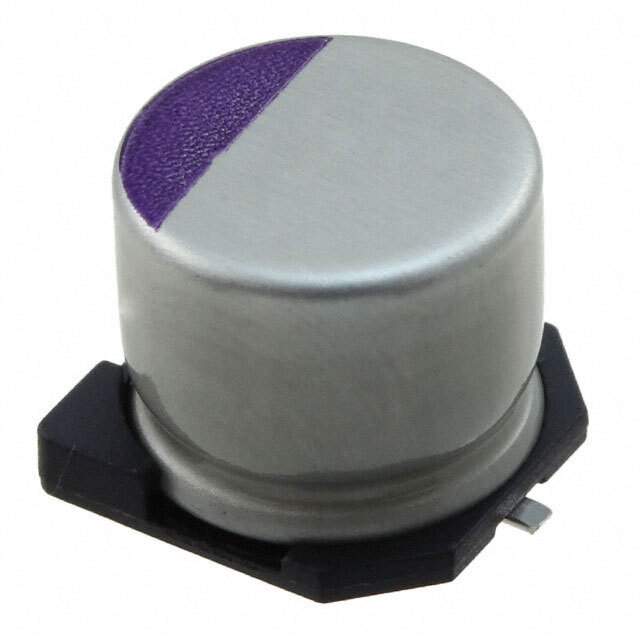

25SVPS10M Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series OS-CON™, SVPS
Package Tape & Reel
Type Polymer
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) 60mOhm
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ Low Frequency 75 mA @ 120 Hz
Ripple Current @ High Frequency 1.5 A @ 100 kHz
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.276" (7.00mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Base Product Number 25SVPS
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.22.0020
Other Names PCE5086CT,PCE5086TR,PCE5086DKR
Standard Package 1,000
Win Source Part Number 1225480-25SVPS10M
Ultra Librarian 3D Model Ultra Librarian 25SVPS10M CAD Model

Description

The Panasonic Electronic Components 1225480-25SVPS10M is a polymer capacitor from the OS-CON™ SVPS series.

  • Manufacturer: Panasonic Electronic Components
  • Series: OS-CON™ SVPS
  • Capacitance: 10µF
  • Voltage Rating: 25V
  • Tolerance: ±20%
  • ESR: 60mOhm
  • Ripple Current (Low Frequency): 75mA
  • Ripple Current (High Frequency): 1.5A
  • Standard Package: 1,000
  • Mounting: SMD (SMT)
  • Temperature Range: -55°C to 105°C
  • Lifetime @ 105°C: 5,000 hours
  • Package: Radial, Can - SMD
  • Dimensions: 0.315" diameter, 0.276" height
