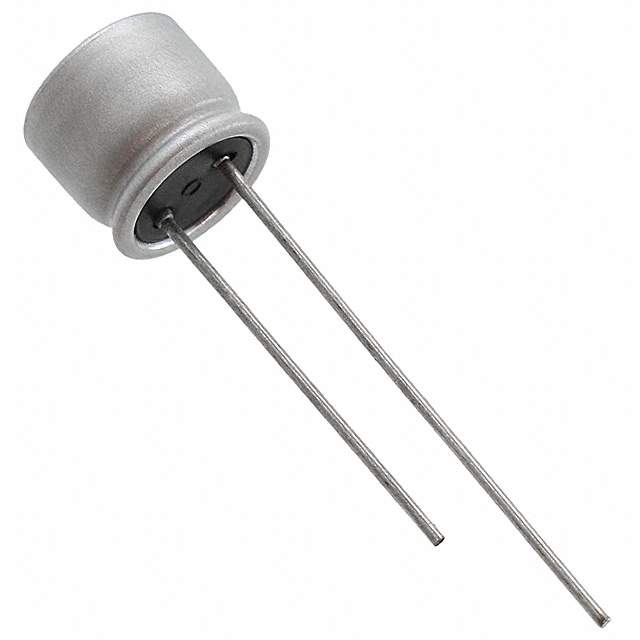

Same model may have multiple batches, images only for reference.

25SEPF180M

Name: 25SEPF180M
Brand: Panasonic
SKU: 1328537
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	25SEPF180M
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 180UF 20% 25V T/H / 180 µF 25 V Aluminum - Polymer Capacitors Radial, Can 16mOhm 5000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum - Polymer Capacitors
Manufacturer	Panasonic Electronic Components
Packaging	Bulk
Type	Polymer
Capacitance	180 µF
Tolerance	±20%
Voltage - Rated	25 V
ESR (Equivalent Series Resistance)	16mOhm
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Applications	General Purpose
Ripple Current @ Low Frequency	232.5 mA @ 120 Hz
Ripple Current @ High Frequency	4.65 A @ 100 kHz
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.472" (12.00mm)
Mounting	Through Hole
Case / Package	Radial, Can
Base Product Number	25SEPF
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8532.22.0020
Other Part Number	P16322
Standard Package	200
Win Source Part Number	1328537-25SEPF180M
Ultra Librarian 3D Model	Ultra Librarian 25SEPF180M CAD Model

Description

The Panasonic Electronic Components 25SEPF180M is a through-hole aluminum polymer capacitor with a capacitance of 180 µF and a tolerance of ±20%.

Capacitance: 180 µF
Tolerance: ±20%
Diameter: 0.315" (8.00mm)
Height Seated (Max): 0.472" (12.00mm)
Application: General Purpose
ESR: 16mOhm
Voltage Rating: 25V
Ripple Current (Low Frequency): 232.5mA @ 120Hz
Ripple Current (High Frequency): 4.65A @ 100kHz
Lifetime: 5000 hours @ 105°C
RoHS3 Compliant: Yes
Case/Package: Radial Can
Mounting Type: Through Hole
