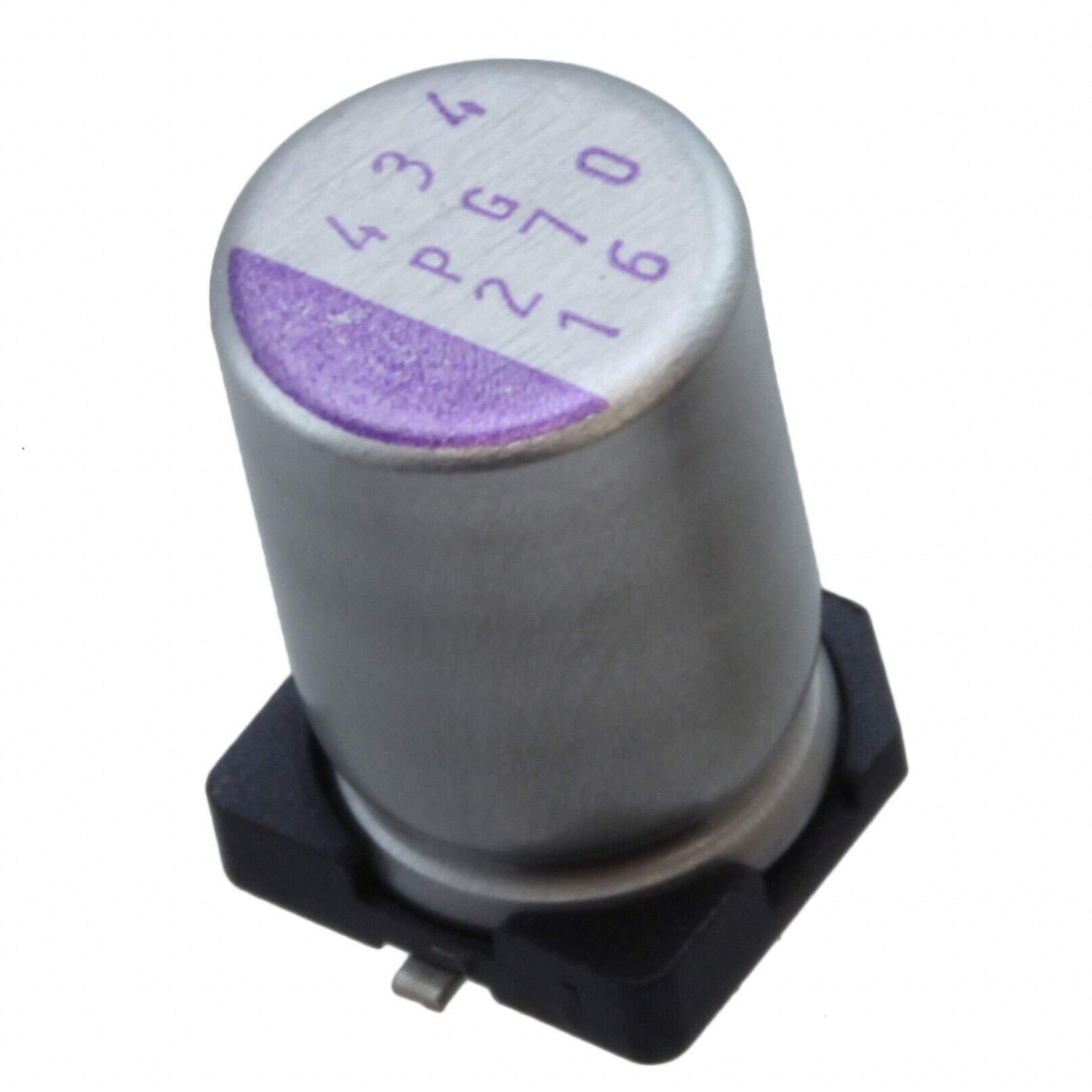

Same model may have multiple batches, images only for reference.

20SVPG33M

Name: 20SVPG33M
Brand: Panasonic
SKU: 1002287
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	20SVPG33M
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 33UF 20% 20V SMD / 33 µF 20 V Aluminum - Polymer Capacitors Radial, Can - SMD 27mOhm 5000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum - Polymer Capacitors
Mfr	Panasonic Electronic Components
Series	OS-CON™, SVPG
Package	Tape & Reel
Type	Polymer
Capacitance	33 µF
Tolerance	±20%
Voltage - Rated	20 V
ESR (Equivalent Series Resistance)	27mOhm
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Applications	General Purpose
Ripple Current @ Low Frequency	150 mA @ 120 Hz
Ripple Current @ High Frequency	3 A @ 100 kHz
Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.177" (4.50mm)
Surface Mount Land Size	0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting	SMD (SMT)
Package / Case	Radial, Can - SMD
Base Product Number	20SVPG
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	P18931TR,P18931CT,P18931DKR
Standard Package	2,500
Win Source Part Number	1002287-20SVPG33M
Ultra Librarian 3D Model	Ultra Librarian 20SVPG33M CAD Model

Description

The OS-CON™, SVPG is a polymer type aluminum capacitor that is suitable for general purpose applications.

Type: Polymer Aluminum Capacitor
Series: OS-CON™, SVPG
Application: General Purpose
Capacitance: 33 µF
Voltage Rating: 20 V
ESR: 27mOhm
Ripple Current (Low Frequency): 150 mA @ 120 Hz
Ripple Current (High Frequency): 3 A @ 100 kHz
Land Size: 0.209" L x 0.209" W (5.30mm x 5.30mm)
Height (Seated): 0.177" (4.50mm)
Lifetime: 5000 Hrs @ 105°C
Temperature Range: -55°C to 105°C
Package: Radial, Can - SMD
