Same model may have multiple batches, images only for reference.

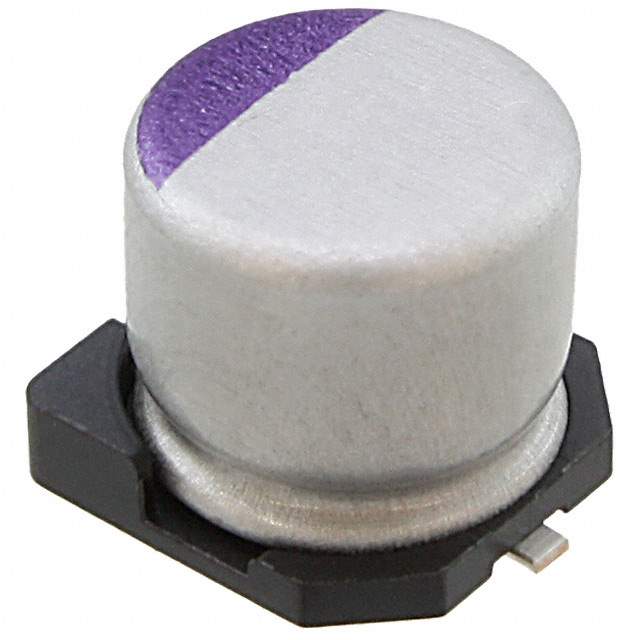

20SVPF120M Real Image
Same model may have multiple batches, images only for reference.

20SVPF120M

Part No 20SVPF120M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 120UF 20% 20V SMD / 120 µF 20 V Aluminum - Polymer Capacitors Radial, Can - SMD 25mOhm 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Type Polymer
Capacitance 120 µF
Tolerance ±20%
Voltage - Rated 20 V
ESR (Equivalent Series Resistance) 25mOhm
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ Low Frequency 160 mA @ 120 Hz
Ripple Current @ High Frequency 3.2 A @ 100 kHz
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.236" (6.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
Base Product Number 20SVPF
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number P16498TR,P16498CT,P16498DKR
Standard Package 1,000
Win Source Part Number 1328516-20SVPF120M
Ultra Librarian 3D Model Ultra Librarian 20SVPF120M CAD Model

Description

The 20SVPF120M is an electronic component that falls under the category of capacitors.

  • Capacitance: 120 μF
  • Voltage Rating: 20 V
  • Manufacturer: Panasonic Electronic Components
  • Standard Package: 1,000
  • Supply Status: Limited
  • Tolerance: ±20%
  • ESR: 25mOhm
  • Ripple Current: 160 mA @ 120 Hz
  • Ripple Current: 3.2 A @ 100 kHz
