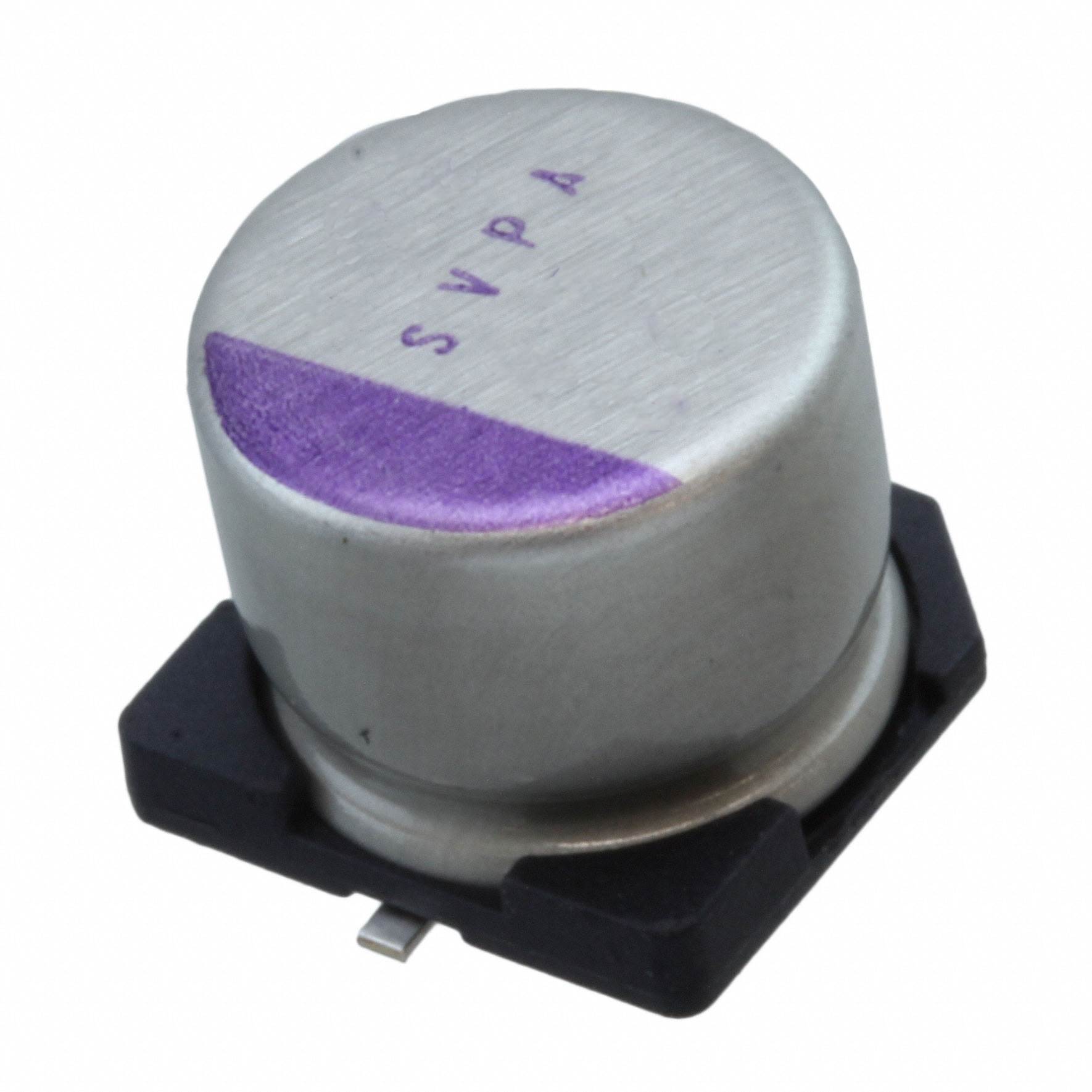

Same model may have multiple batches, images only for reference.
20SVPA47M Panasonic
Same model may have multiple batches, images only for reference.

20SVPA47M

Part No 20SVPA47M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 47UF 20% 20V SMD
Datasheet
20SVPA47M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Series OS-CON, SVPA
Packaging Reel package
Type Polymer
Capacitance 47μF
Tolerance ±20%
Voltage Rating 20V
ESR (Equivalent Series Resistance) 33 mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Operating Temperature Range -55°C ~ 105°C
Applications General
Ripple Current - Low Frequency 131.5mA @ 120Hz
Ripple Current - High Frequency 2.63A @ 100kHz
Dimension 0.315" Dia (8.00mm)
Height - Seated (Maximum) 0.276" (7.00mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting SMD
Package Radial, Can - SMD
Win Source Part Number 761767-20SVPA47M
Popularity Medium
Supply and Demand Status Limited
Family Name SVPA
Introduction Date October 19, 2004
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 20SVPA47M CAD Model

Description

This polymer capacitor is manufactured by Panasonic Electronic Components and is a part of the OS-CON SVPA series.

  • Capacitance: 47μF
  • Voltage Rating: 20V
  • Package: SMD Radial Can
  • Operating Temperature Range: -55°C to 105°C
  • Tolerance: ±20%
  • ESR (Equivalent Series Resistance): 33 mOhm
  • Ripple Current: 131.5mA @ 120Hz, 2.63A @ 100kHz
  • Surface Mount Land Size: 0.327 inches L x 0.327 inches W (8.30mm x 8.30mm)
  • Height: 0.315 inches (8.00mm)
  • Family: SVPA
  • Applications: General
  • Popularity: Medium
  • Supply/Demand Status: Limited
