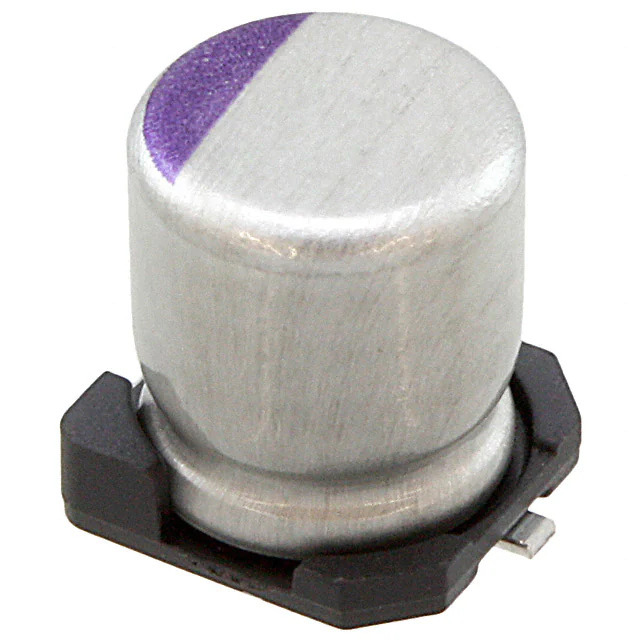

Same model may have multiple batches, images only for reference.

20SVPA22M

Name: 20SVPA22M
Brand: Panasonic
SKU: 1359507
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	20SVPA22M
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 22UF 20% 20V SMD / 22 µF 20 V Aluminum - Polymer Capacitors Radial, Can - SMD 35mOhm 2000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum - Polymer Capacitors
Mfr	Panasonic Electronic Components
Series	OS-CON™, SVPA
Package	Tape & Reel
Product Status	Active
Type	Polymer
Capacitance	22 µF
Tolerance	±20%
Voltage - Rated	20 V
ESR (Equivalent Series Resistance)	35mOhm
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	102 mA @ 120 Hz
Ripple Current @ High Frequency	2.04 A @ 100 kHz
Lead Spacing	-
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.236" (6.00mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Base Product Number	20SVPA
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1359507-20SVPA22M
Ultra Librarian 3D Model	Ultra Librarian 20SVPA22M CAD Model

Description

The 20SVPA22M Aluminum Polymer Capacitor is a reliable electronic component suitable for various applications from Panasonic Electronic Components.

Series: OS-CON™, SVPA
Packaging: Tape & Reel
Capacitance: 22µF
Voltage Rating: 20V
Temperature Range: -55°C to 105°C
Mounting Type: Surface Mount
Application: General Purpose
