Same model may have multiple batches, images only for reference.

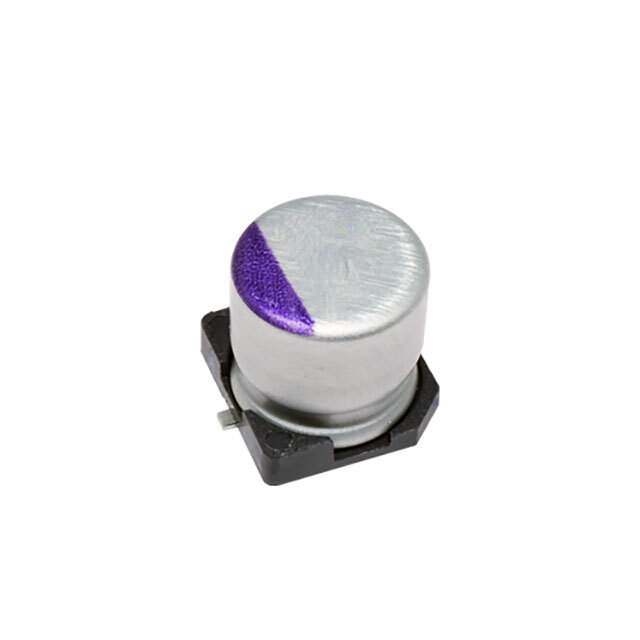

16SVPT1000M Real Image
Same model may have multiple batches, images only for reference.

16SVPT1000M

Part No 16SVPT1000M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 1000UF 20% 16V SMD  /  1000 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 12mOhm 20000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series OS-CON™, SVPT
Package Tape & Reel
Type Polymer
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) 12mOhm
Lifetime @ Temp. 20000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ Low Frequency 270 mA @ 120 Hz
Ripple Current @ High Frequency 5.4 A @ 100 kHz
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.500" (12.70mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Base Product Number 16SVPT
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 10-16SVPT1000MCT,10-16SVPT1000MTR,10-16SVPT1000MDKR
Standard Package 400
Win Source Part Number 984554-16SVPT1000M
Ultra Librarian 3D Model Ultra Librarian 16SVPT1000M CAD Model

Description

The 984554-16SVPT1000M is a polymer capacitor from Panasonic Electronic Components.

  • Series: OS-CON™, SVPT
  • Voltage Rating: 16V
  • Capacitance: 1000µF
  • Tolerance: ±20%
  • ESR (Equivalent Series Resistance): 12mOhm
  • Ripple Current: 270mA @ low frequency and 5.4A @ high frequency
  • Lifetime: 20000 hours @ 105°C
  • Mountable: Surface
  • Package: Radial, can - SMD
  • Temperature Range: -55°C to 105°C
