Same model may have multiple batches, images only for reference.

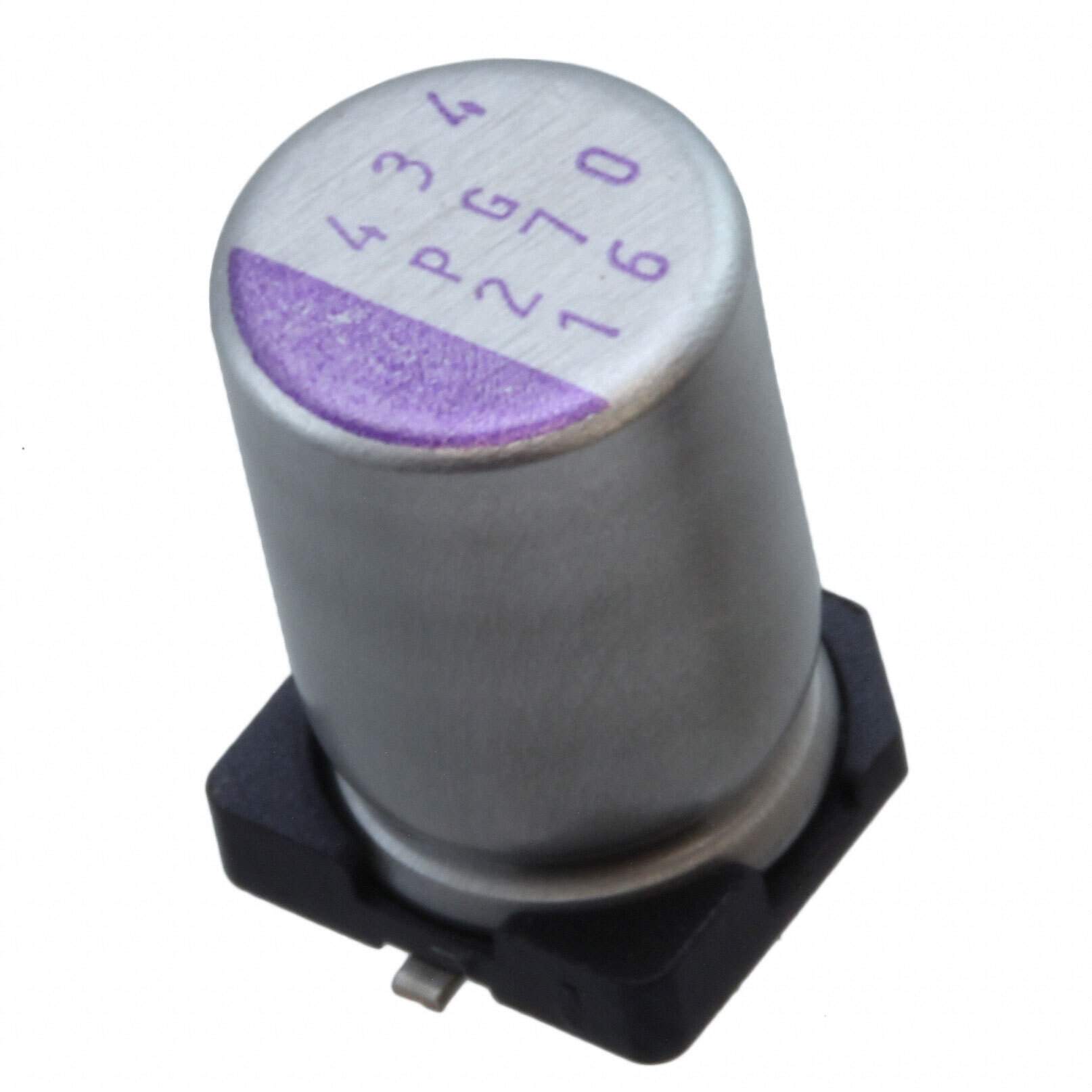

16SVPG47M Real Image
Same model may have multiple batches, images only for reference.

16SVPG47M

Part No 16SVPG47M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 47UF 20% 16V SMD  /  47 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 25mOhm 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series OS-CON™, SVPG
Package Tape & Reel
Type Polymer
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) 25mOhm
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ Low Frequency 160 mA @ 120 Hz
Ripple Current @ High Frequency 3.2 A @ 100 kHz
Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.177" (4.50mm)
Surface Mount Land Size 0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Base Product Number 16SVPG
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.22.0020
Other Names P18930TR,P18930CT,P18930DKR
Standard Package 2,500
Win Source Part Number 1031953-16SVPG47M
Ultra Librarian 3D Model Ultra Librarian 16SVPG47M CAD Model

Description

The OS-CON™, SVPG series from Panasonic Electronic Components is a 47 µF aluminum-polymer capacitor with a voltage rating of 16 V.

  • Package Type: Tape & Reel
  • Category: Capacitors
  • ECCN: EAR99
  • MSL Level: Not Applicable
  • Quantity Per Package: 2500
  • REACH Status: REACH Unaffected
  • HTSUS: 8532.22.0020
  • Ripple Current @ Low Frequency: 160 mA @ 120 Hz
  • Ripple Current @ High Frequency: 3.2 A @ 100 kHz
