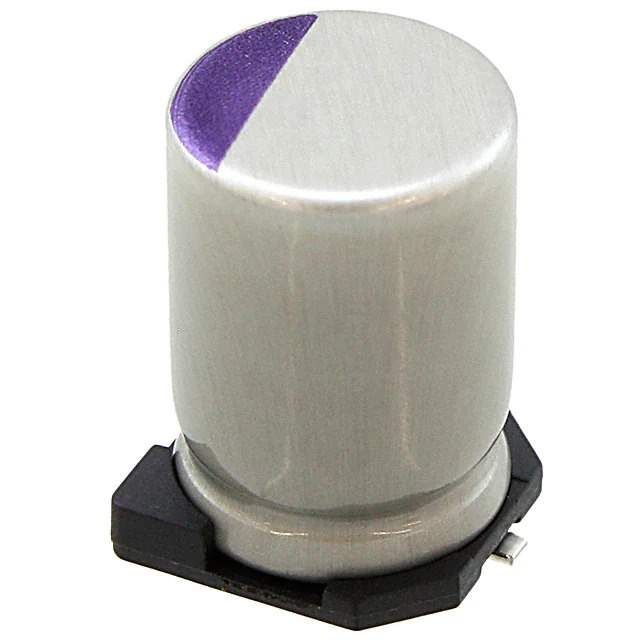

Same model may have multiple batches, images only for reference.

16SVPC270M

Name: 16SVPC270M
Brand: Panasonic
SKU: 854097
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	16SVPC270M
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 270UF 20% 16V SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum - Polymer Capacitors
Mfr	Panasonic
Series	OS-CON™, SVPC
Package	Tape & Reel
Product Status	Active
Type	Polymer
Capacitance	270 µF
Tolerance	±20%
Voltage - Rated	16 V
ESR (Equivalent Series Resistance)	16mOhm
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Applications	General Purpose
Ripple Current @ Low Frequency	203.5 mA @ 120 Hz
Ripple Current @ High Frequency	4.07 A @ 100 kHz
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.472" (12.00mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Base Product Number	16SVPC
Standard Package	400 pcs
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	854097-16SVPC270M
Ultra Librarian 3D Model	Ultra Librarian 16SVPC270M CAD Model

Description

The OS-CON™ SVPC series capacitor is a high-performance polymer capacitor designed for general-purpose applications.

Capacitance: 270 µF
Voltage Rating: 16 V
ESR: 16mOhm
Diameter: 0.315" (8.00mm)
Height: 0.472" (12.00mm)
Mounting Type: Surface Mount
Package: Radial, Can - SMD
Operating Temperature: -55°C to 105°C
Lifetime: 2000 hours @ 105°C
Manufacturer: Panasonic
