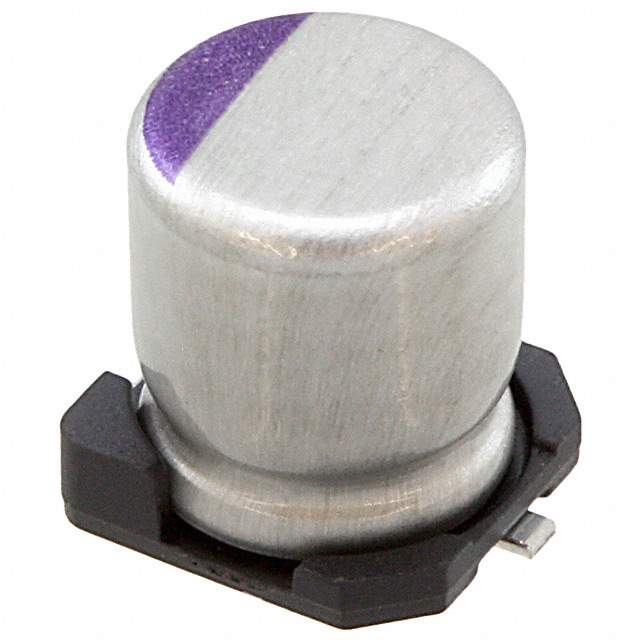

Same model may have multiple batches, images only for reference.

16SVPA39MAA

Name: 16SVPA39MAA
Brand: Panasonic
SKU: 1000999
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	16SVPA39MAA
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 39UF 20% 16V SMD / 39 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 35mOhm 2000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum - Polymer Capacitors
Mfr	Panasonic Electronic Components
Series	OS-CON™, SVPA
Package	Tape & Reel
Type	Polymer
Capacitance	39 µF
Tolerance	±20%
Voltage - Rated	16 V
ESR (Equivalent Series Resistance)	35mOhm
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Applications	General Purpose
Ripple Current @ Low Frequency	102 mA @ 120 Hz
Ripple Current @ High Frequency	2.04 A @ 100 kHz
Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.236" (6.00mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting	SMD (SMT)
Package / Case	Radial, Can - SMD
Base Product Number	16SVPA
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	P122163DKR,P122163TR,P122163CT
Standard Package	1,000
Win Source Part Number	1000999-16SVPA39MAA
Ultra Librarian 3D Model	Ultra Librarian 16SVPA39MAA CAD Model

Description

The OS-CON™, SVPA is a polymer capacitor manufactured by Panasonic Electronic Components.

Package: tape and reel
Capacitance: 39µF
Tolerance: ±20%
Voltage Rating: 16V
Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Technology: SMD (SMT)
Lifetime: 2000 Hrs @ 105°C
ESR: 35mOhm
