Same model may have multiple batches, images only for reference.

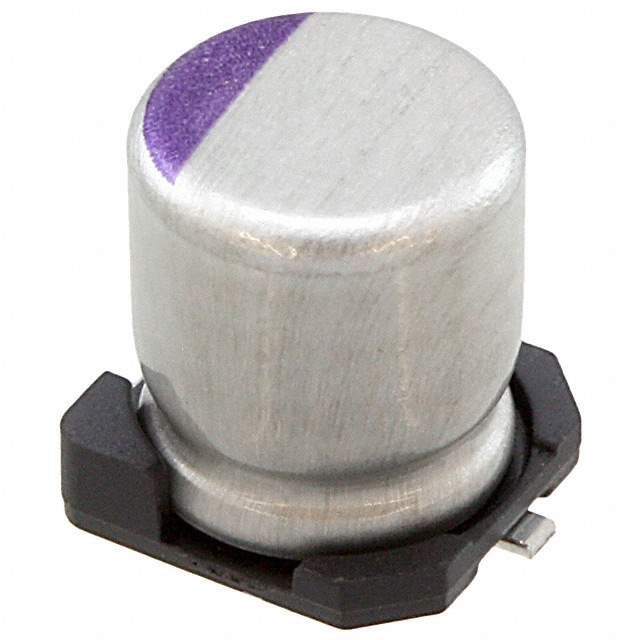

6SVPA120MAA Real Image
Same model may have multiple batches, images only for reference.

6SVPA120MAA

Part No 6SVPA120MAA
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 120UF 20% 6.3V SMD / Cap Aluminum Polymer 120uF 6.3VDC 20% (6.3 X 5.9mm) SMD 0.022 Ohm 2570mA 2000h 105°C T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Series OS-CON, SVPA
Type Polymer
Capacitance 120μF
Tolerance ±20%
Voltage Rating DC 6.3V
Equivalent Series Resistance 22 mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Operating Temperature Range -55°C ~ 105°C
Ripple Current - Low Frequency 128.5mA @ 120Hz
Ripple Current - High Frequency 2.57A @ 100kHz
Dimension 0.248" Dia (6.30mm)
Height - Seated (Maximum) 0.236" (6.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD
Package Radial, Can - SMD
Win Source Part Number 799182-6SVPA120MAA
Popularity Medium
Supply and Demand Status Balance
Family Name SVPA
Introduction Date October 19, 2004
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 6SVPA120MAA CAD Model

Description

The Panasonic Electronic Components OS-CON SVPA is a polymer type capacitor from Panasonic Electronic Components.

  • Capacitance: 120μF
  • Voltage Rating: 6.3V DC
  • Tolerance: ±20%
  • Equivalent Series Resistance: 22 mOhm
  • Ripple Current (Low Frequency): 128.5mA @ 120Hz
  • Ripple Current (High Frequency): 2.57A @ 100kHz
  • Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
  • Height: 0.236" (6.00mm)
  • Lifetime: 2000 hours @ 105°C
