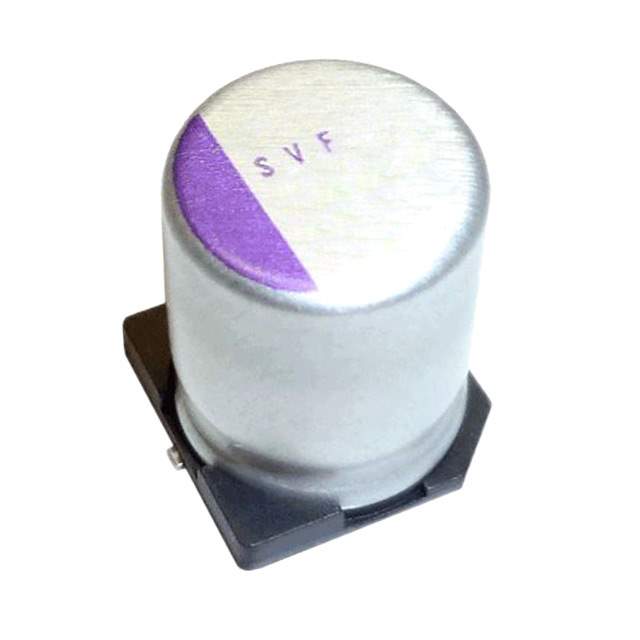

16SVF1000MX Real Image
Same model may have multiple batches, images only for reference.

16SVF1000MX

Part No 16SVF1000MX
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 1000UF 20% 16V SMD / 1000 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 16mOhm 1000 Hrs @ 125°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Type Polymer
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) 16mOhm
Lifetime @ Temp. 1000 Hrs @ 125°C
Temperature Range - Operating -55°C ~ 125°C
Applications General Purpose
Ripple Current @ Low Frequency 215 mA @ 120 Hz
Ripple Current @ High Frequency 4.3 A @ 100 kHz
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
Base Product Number 16SVF
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number P124990CT,P124990TR,P124990DKR
Standard Package 500
Win Source Part Number 1331536-16SVF1000MX
Ultra Librarian 3D Model Ultra Librarian 16SVF1000MX CAD Model

Description

The Panasonic Electronic Components 1331536-16SVF1000MX is a surface mount aluminum-polymer capacitor with a capacitance of 1000 μF and a voltage rating of 16 V.

  • Capacitance: 1000 μF
  • Voltage Rating: 16 V
  • Tolerance: ±20%
  • ESR: 16mOhm
  • Ripple Current: 215 mA @ 120 Hz and 4.3 A @ 100 kHz
  • Case/Package: Radial, can - SMD
  • Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
  • Application: General-purpose
  • Lifetime: 1000 hours @ 125°C
  • ROHS3 Compliant: Yes
  • ECCN: EAR99
