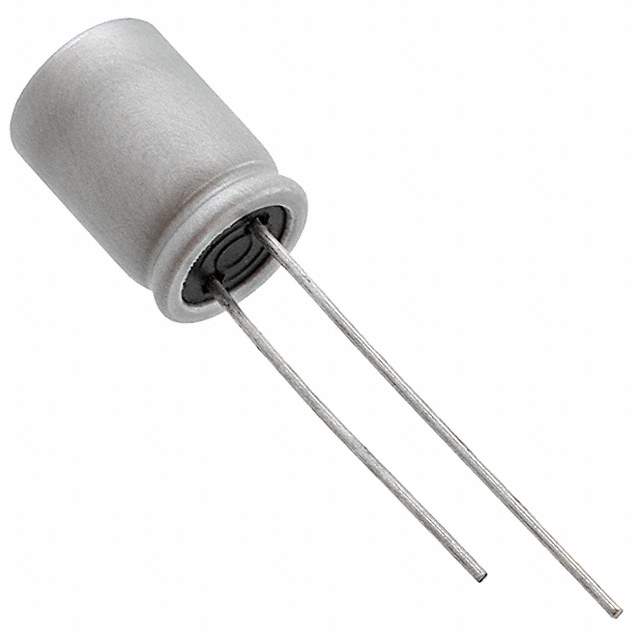

16SEPF560M Real Image
Same model may have multiple batches, images only for reference.

16SEPF560M

Part No 16SEPF560M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 560UF 20% 16V T/H / 560 µF 16 V Aluminum - Polymer Capacitors Radial, Can 14mOhm 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series OS-CON™, SEPF
Package Bulk
Type Polymer
Capacitance 560 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) 14mOhm
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ Low Frequency 247.5 mA @ 120 Hz
Ripple Current @ High Frequency 4.95 A @ 100 kHz
Lead Spacing 0.138" (3.50mm)
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.472" (12.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Base Product Number 16SEPF
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.22.0020
Other Names P16304
Standard Package 200
Win Source Part Number 991814-16SEPF560M
Ultra Librarian 3D Model Ultra Librarian 16SEPF560M CAD Model

Description

The SEPF560M is an aluminum-polymer capacitor from Panasonic Electronic Components.

  • Capacitance: 560µF
  • Rated Voltage: 16V
  • Series: OS-CON™, SEPF
  • Package: radial, can
  • Application: general purpose
  • Lifetime: 5000 hours @ 105°C
  • ESR: 14mOhm
  • Ripple Current (Low Frequency): 247.5mA @ 120Hz
  • Ripple Current (High Frequency): 4.95A @ 100kHz
