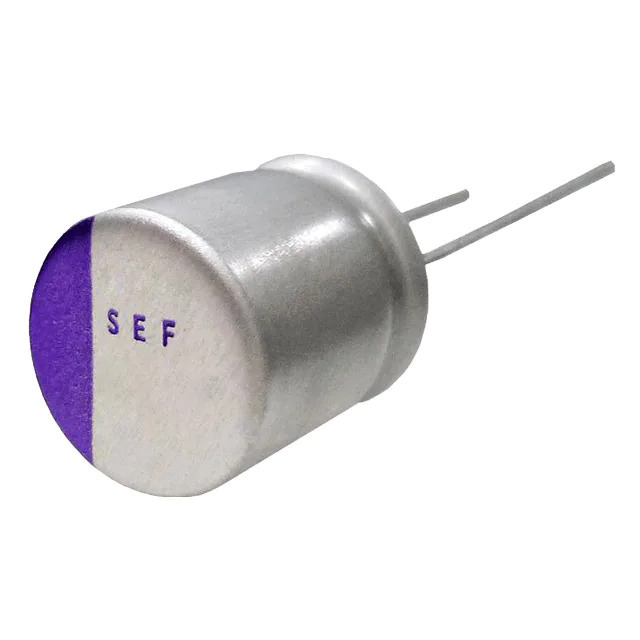

Same model may have multiple batches, images only for reference.

16SEF1000M

Name: 16SEF1000M
Brand: Panasonic
SKU: 1359596
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	16SEF1000M
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 1000UF 20% 16V T/H / 1000 µF 16 V Aluminum - Polymer Capacitors Radial, Can 12mOhm 1000 Hrs @ 125°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum - Polymer Capacitors
Mfr	Panasonic Electronic Components
Series	OS-CON™, SEF
Package	Bulk
Product Status	Active
Type	Polymer
Capacitance	1000 µF
Tolerance	±20%
Voltage - Rated	16 V
ESR (Equivalent Series Resistance)	12mOhm
Lifetime @ Temp.	1000 Hrs @ 125°C
Temperature Range - Operating	-55°C ~ 125°C
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	85 mA @ 120 Hz
Ripple Current @ High Frequency	1.7 A @ 100 kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.512" (13.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
Base Product Number	16SEF
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1359596-16SEF1000M
Ultra Librarian 3D Model	Ultra Librarian 16SEF1000M CAD Model

Description

The 16SEF1000M is a polymer capacitor manufactured by Panasonic Electronic Components. It is part of the OS-CON™, SEF series and is designed for through-hole mounting.

Series: OS-CON™, SEF
Mounting Type: Through Hole
Capacitance: 1000μF
Voltage Rating: 16V
ESR: 12mOhm
Application: General Purpose
Lifetime: 1000 hours @ 125°C
Size: 0.394" diameter (10.00mm)
Height: 0.512" (13.00mm)
Packaging: Bulk
