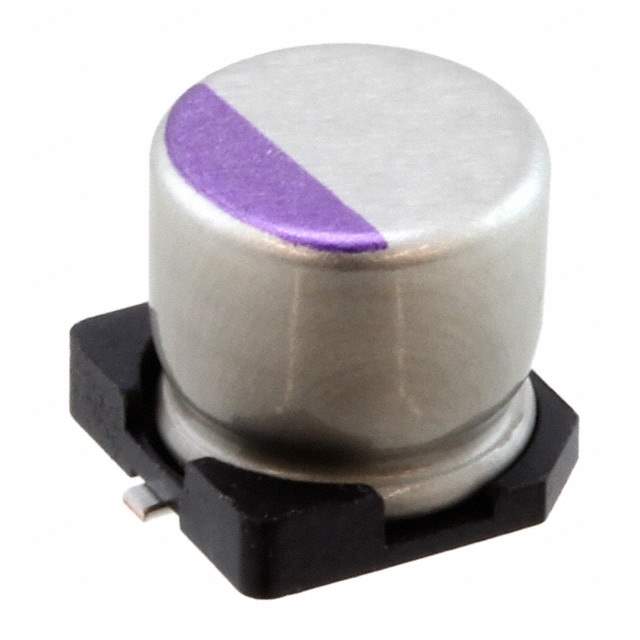

10SVPE220M Real Image
Same model may have multiple batches, images only for reference.

10SVPE220M

Part No 10SVPE220M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 220UF 20% 10V SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Series OS-CON, SVPE
Packaging Reel package
Type Polymer
Capacitance 220μF
Tolerance ±20%
Voltage Rating 10V
ESR (Equivalent Series Resistance) 20 mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Operating Temperature Range -55°C ~ 105°C
Ripple Current - Low Frequency 135mA @ 120Hz
Ripple Current - High Frequency 2.7A @ 100kHz
Dimension 0.248" Dia (6.30mm)
Height - Seated (Maximum) 0.236" (6.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD
Package Radial, Can - SMD
Win Source Part Number 760178-10SVPE220M
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1k pcs
Family Name SVPE
Introduction Date August 13, 2012
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 10SVPE220M CAD Model

Description

The OS-CON SVPE 220μF 10V polymer capacitor is an electronic component manufactured by Panasonic Electronic Components.

  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Applications: Wide range of electronic applications
  • ESR: 20 mOhm
  • Ripple Current: 135mA @ 120Hz
  • Lifetime: 2000 hours @ 105°C
  • Package: Radial, can-SMD
  • Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
