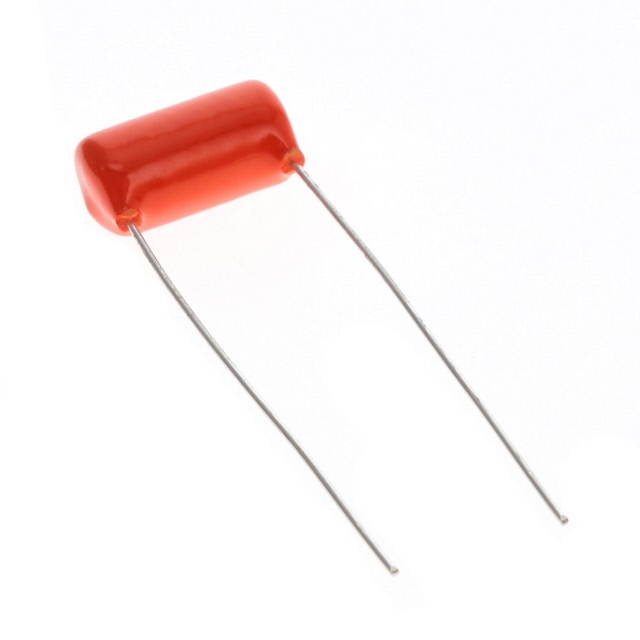

Same model may have multiple batches, images only for reference.
685K100CS4 Paktron – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

685K100CS4

Part No 685K100CS4
Catalog Film Capacitors
Description CAPACITOR MLP 6.8UF 100V THRU-HO
Sample
Rohs State Need to verify
Need Help

Products specifications Report Issue?

Capacitance 6.8 µF
Tolerance ±10%
Voltage Rating - AC 80V
Voltage Rating - DC 100V
Dielectric Material Polyester, Metallized
ESR (Equivalent Series Resistance) 5 mOhms
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Through Hole
Case / Package 10-DIP
Size / Dimension 0.701" L x 0.500" W (17.80mm x 12.70mm)
Height - Seated (Max) 0.248" (6.30mm)
Termination PC Pins
Lead Spacing 0.394" (10.00mm)
Applications EMI, RFI Suppression; High Pulse, DV/DT
Features Low ESR, High Temperature
Package Tube
Supply and Demand Status Shortage
Win Source Part Number 1520476-685K100CS4
Ultra Librarian 3D Model Ultra Librarian 685K100CS4 CAD Model
