Same model may have multiple batches, images only for reference.

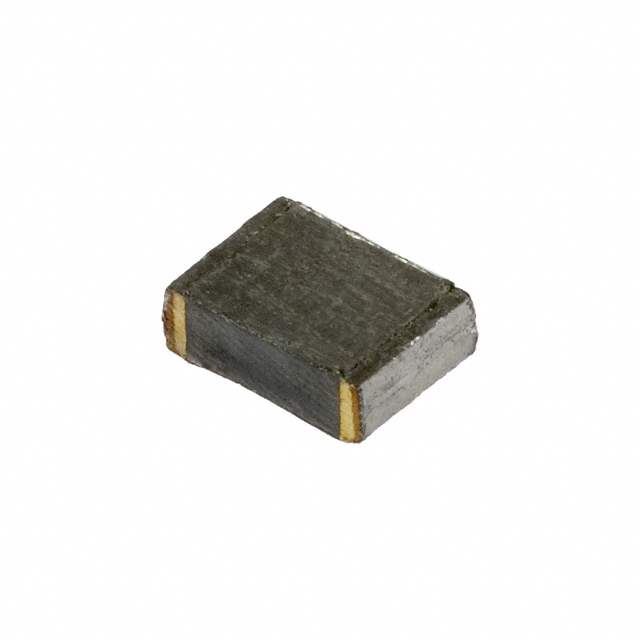

ECHU1C104GX5 Real Image
Same model may have multiple batches, images only for reference.

ECHU1C104GX5

Part No ECHU1C104GX5
Manufacturer Panasonic
Catalog Film Capacitors
Description Plastic Film Capacitors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Panasonic
Operating Temp Range -55C to 125C
Rad Hardened No
Failure Rate Not Required
Lead Diameter (nom) Not Required(mm)
Construction SMT Chip
Voltage 16VDC
Capacitance 100000(pF)
Tolerance (+ or -) 2%
Temp Coeff (Dielectric) PPS
Lead Spacing (nom) Not Required(mm)
Mounting Style SMD/SMT
Packaging Tape and Reel
Package 1210
Product Length (mm) 3.2(mm)
Product Depth (mm) 2.5(mm)
Product Height (mm) 2.1(mm)
Seated Plane Height Not Required(mm)
Size (mm) 3.2 X 2.5 X 2.1
Product Diameter (mm) Not Required(mm)
Win Source Part Number 093394-ECHU1C104GX5
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ECHU1C104GX5 CAD Model

Description

Product Overview

The ECHU1C104GX5 offers unparalleled performance and reliability for a variety of electronic projects. Known for its efficiency, it's a staple in high-performance circuits.

Features and Benefits

  • Highly stable capacitance values.
  • Low loss characteristics.
  • Compact footprint for efficient board space utilization.
  • Precision engineering for consistent quality.

Applications

  • Audio equipment.
  • Portable electronic devices.
  • Medical instrumentation.
  • Control systems.

Additional Details

This capacitor is critical for projects demanding high precision and dependability, supporting advanced technological developments.
