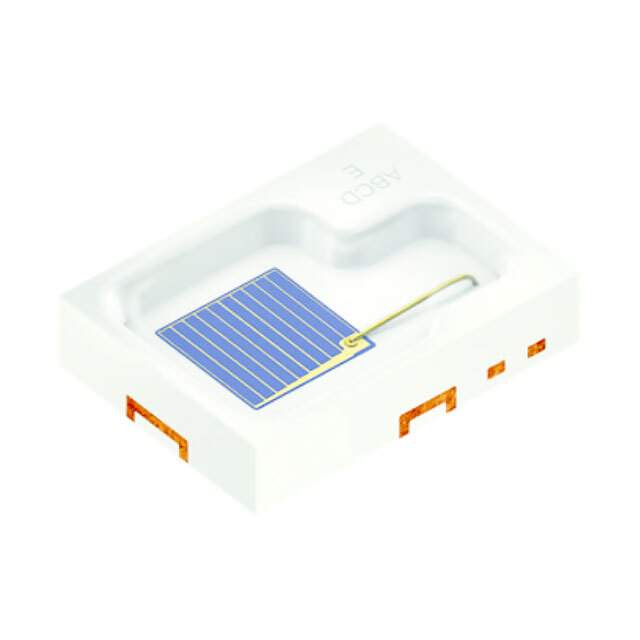

SFH 4770S Real Image
Same model may have multiple batches, images only for reference.

SFH 4770S

Part No SFH 4770S
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Infrared, UV, Visible Emitters
Description EMITTER IR 860NM 1.5A SYNIOS  /  Infrared (IR) Emitter 860nm 3.2V 1.5A 370mW/sr @ 1A 120° 2-SMD, No Lead
Datasheet
SFH 4770S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Emitters - Infrared, UV, Visible
Mfr ams-OSRAM USA Inc.
Package Tape & Reel
Type Infrared (IR)
Current - DC Forward (If) (Max) 1.5A
Radiant Intensity (Ie) Min @ If 370mW/sr @ 1A
Wavelength 860nm
Voltage - Forward (Vf) (Typ) 3.2V
Viewing Angle 120°
Orientation Top View
Temperature Range - Operating -40°C ~ 100°C (TA)
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Base Product Number SFH4770
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names SFH4770S-ND,Q65111A9246,SFH 4770S-ND,475-3591-2,SFH4770S,475-3591-1,475-3591-6
Standard Package 2,000
Win Source Part Number 976705-SFH 4770S
Ultra Librarian 3D Model Ultra Librarian SFH 4770S CAD Model

Description

The SFH 4770S LED emitter is an infrared (IR) component that has a forward voltage (Vf) of 3.2V and a current - DC forward (If) (Max) of 1.5A.

  • Viewing Angle: 120 degrees
  • Wavelength: 860nm
  • Radiant Intensity (Ie) min @ If: 370mW/sr @ 1A
  • Package: 2-SMD, no lead
  • Standard Package: 2,000
  • Termination Style: SMD (SMT)
