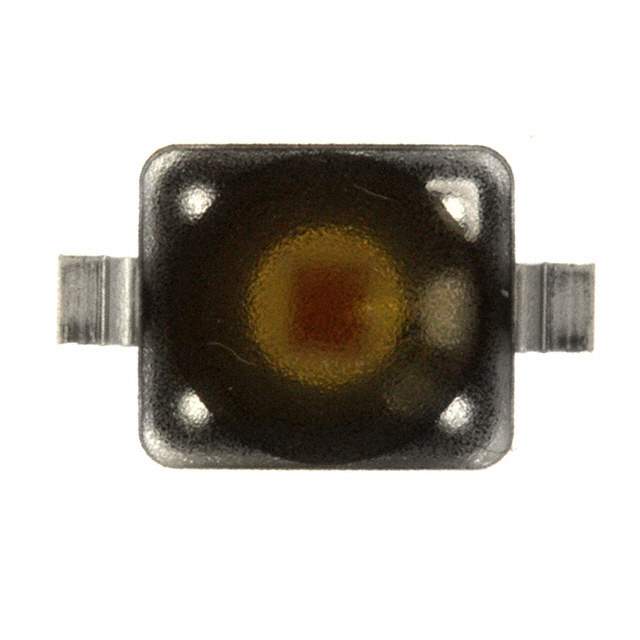

LRW5AP-KZMX-1 Real Image
Same model may have multiple batches, images only for reference.

LRW5AP-KZMX-1

Part No LRW5AP-KZMX-1
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog OEM Parts (J - L)
Description Power LED; LED Color: Red; Luminous Intensity: 45000mcd; Viewing Angle: 160°; Forward Current: 2A; Forward Voltage:...
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Termination SMD/SMT
Color Red
Depth 7.1 mm
Dominant Wavelength 625 nm
Forward Current 2 A
Forward Voltage 2.5 V
Length 8.1 mm
Lens Style Circular, Colorless, Diffused
Luminous Flux 210 lm
Luminous Intensity 45 cd
Maximum Operating Temperature 150 °C
Max Power Dissipation 7.5 W
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Elements 1
Number of LEDs 1
Number of Pins 2
Radiation Hardening No
REACH SVHC No SVHC
RoHS Compliant
Test Current 1.4 A
Viewing Angle 140 °
Wavelength 632 nm
Win Source Part Number 1071002-LRW5AP-KZMX-1
Categories OEM Parts(J-L)
Manufacturer OSRAM Opto Semiconductors Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian LRW5AP-KZMX-1 CAD Model

Description

The OSRAM Opto Semiconductors Inc. LRW5AP-KZMX-1 LED is a high-quality electronic component that is designed to provide bright red light in a small form factor.

  • Forward Voltage: 2.5 V
  • Forward Current: 2 A
  • Luminous Intensity: 45 cd
  • Luminous Flux: 210 lm
  • Viewing Angle: 140 degrees
  • Package: PLCC
  • Number of Pins: two
  • Lens: colorless diffused circular lens
  • Installation: surface mount
  • RoHS Compliant: Yes
  • Operating Temperature: -40 to 150 degrees Celsius
