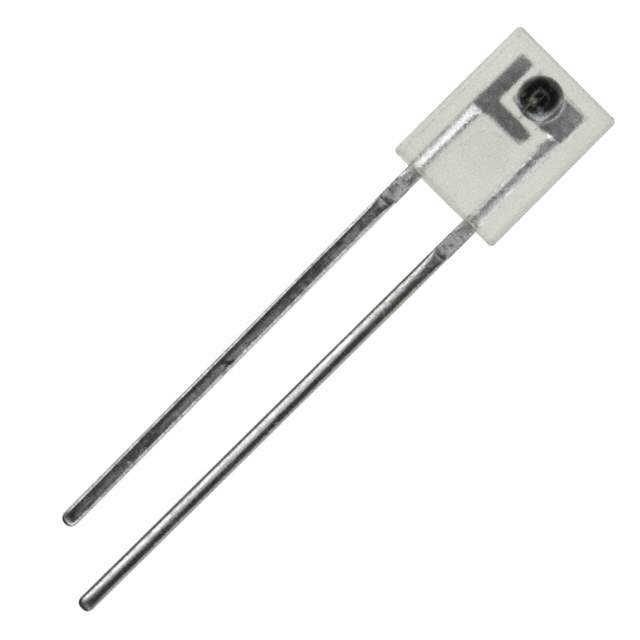

LPT 80A Real Image
Same model may have multiple batches, images only for reference.

LPT 80A

Part No LPT 80A
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Optical Sensors - Phototransistors
Description SENSOR PHOTO 850NM SIDE VIEW RAD / Phototransistors 850nm Side View Radial
Datasheet
LPT 80A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Phototransistors
Mfr ams-OSRAM USA Inc.
Package Bulk
Product Status Last Time Buy
Voltage - Collector Emitter Breakdown (Max) 30 V
Current - Collector (Ic) (Max) 50 mA
Current - Dark (Id) (Max) 50 nA
Wavelength 850nm
Viewing Angle 70°
Power - Max 100 mW
Mounting Type Through Hole
Orientation Side View
Temperature Range - Operating -40°C ~ 100°C (TA)
Package / Case Radial
Base Product Number LPT 80
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.7080
Other Names 475-1419,LPT 80A-ND,LPT80A,Q68000A7852
Standard Package 2,000
Win Source Part Number 1070725-LPT 80A
Ultra Librarian 3D Model Ultra Librarian LPT 80A CAD Model

Description

The LPT 80A phototransistor by ams-OSRAM USA Inc. is a radial type with a maximum power of 100 mW and a voltage collector emitter breakdown of 30 V.

  • Type: Radial
  • Maximum Power: 100 mW
  • Voltage Collector Emitter Breakdown: 30 V
  • Current Collector: 50 mA
  • Viewing Angle: 70 degrees
  • Wavelength: 850nm
  • Current Dark: 50 nA
  • Mounting Type: Through-Hole
  • Operating Temperature: -40 to 100 degrees Celsius
