Same model may have multiple batches, images only for reference.

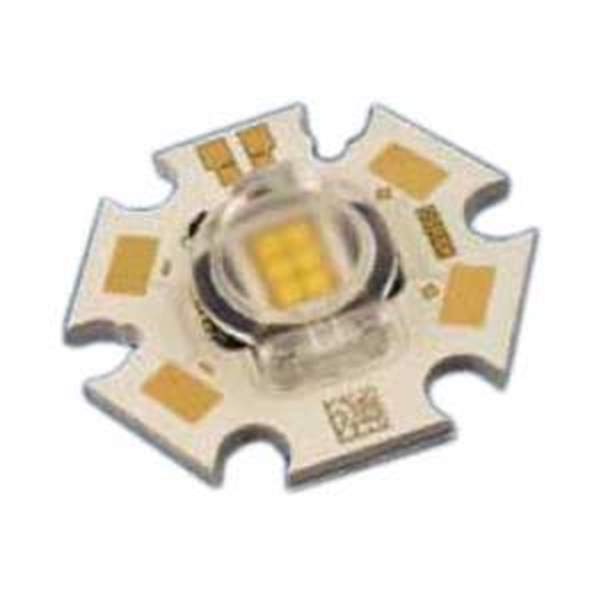

LE CW E3B-NYPZ-SRTU Real Image
Same model may have multiple batches, images only for reference.

LE CW E3B-NYPZ-SRTU

Part No LE CW E3B-NYPZ-SRTU
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED OSTAR 6CHIP W/LENS WHT 3000K
Datasheet
LE CW E3B-NYPZ-SRTU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer OSRAM Opto Semiconductors Inc.
Series Ostar
Packaging Tray
Part Status Obsolete(EOL)
Type LED Module
Color White, Warm
CCT (K) 3000K
Configuration Starboard
Flux @ Current/Temperature - Test 520 lm (330 lm ~ 710 lm)
Current - Test 700mA
Temperature - Test 25°C
Voltage - Forward (Vf) (Typ) 20.8V
Lumens/Watt @ Current - Test 36 lm/W
Current - Max 1A
CRI (Color Rendering Index) 80
Viewing Angle 130°
Dimension 19.90mm Diameter
Height 5.25mm
Light Emitting Surface (LES) 2.00mm Diameter
Lens Type Flat
Win Source Part Number 766839-LE CW E3B-NYPZ-SRTU
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LE CW E3B-NYPZ-SRTU CAD Model

Description

{"FormattedDescription":"

The OSRAM Opto Semiconductors Inc. LED module, with a Win Source Part Number of 766839-LE CW E3B-NYPZ-SRTU, is an obsolete (EOL) product from the Ostar series.

  • Series: Ostar
  • Status: Obsolete (EOL)
  • Packaging: Tray
  • Configuration: Starboard
  • Color: White and Warm
  • Viewing Angle: 130 degrees
  • Forward Voltage: 20.8V
  • Current Test: 700mA
  • Height: 5.25mm
  • Lens Type: Flat
  • Diameter: 19.90mm
  • CCT (K): 3000K
  • CRI (Color Rendering Index): 80
  • Lumens/Watt @ Current-Test: 36 lm/W
  • Flux @ Current/Temperature-Test: 520 lm (330 lm ~ 710 lm) @ 25 degrees Celsius
  • Light Emitting Surface (LES) Diameter: 2.00mm
  • Supply and Demand Status: Limited
"}
