LCW W5AM-KXKY-4U8X-0-350-R18-Z OSRAM Opto Semiconductors Inc.
Same model may have multiple batches, images only for reference.

LCW W5AM-KXKY-4U8X-0-350-R18-Z

Part No LCW W5AM-KXKY-4U8X-0-350-R18-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog LED Lighting - White
Description LED GOLDEN DRAGON WARM WHT 2SMD
Datasheet
LCW W5AM-KXKY-4U8X-0-350-R18-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer OSRAM Opto Semiconductors Inc.
Series Golden DRAGON Plus
Packaging Reel package
Color White, Warm
CCT (K) 2700K
Flux @ 25°C, Current - Test 84 lm (71 lm ~ 97 lm)
Current - Test 350mA
Voltage - Forward (Vf) (Typ) 3.2V
Lumens/Watt @ Current - Test 75 lm/W
CRI (Color Rendering Index) 80 (Typ)
Current - Max 1A
Viewing Angle 170°
Mounting SMD
Package 2-SMD, Gull Wing, Exposed Pad
Manufacturer Package SMD

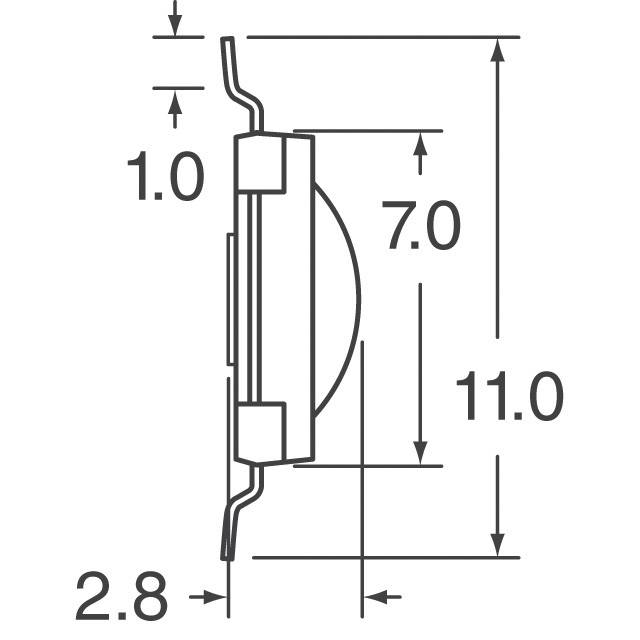

Dimension 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Maximum) 0.122" (3.10mm)
Thermal Resistance of Package 6.5°C/W
Win Source Part Number 778425-LCW W5AM-KXKY-4U8X-0-350-R18-Z
Popularity Medium
Supply and Demand Status Limited
Quantity per package 200
Ultra Librarian 3D Model Ultra Librarian LCW W5AM-KXKY-4U8X-0-350-R18-Z CAD Model

Description

The OSRAM Opto Semiconductors Inc. LCW W5AM-KXKY-4U8X-0-350-R18-Z is a white and warm colored Golden DRAGON Plus component.

  • Package: 2-SMD Gull Wing Exposed Pad
  • Viewing Angle: 170°
  • Forward Voltage: 3.2V
  • Maximum Current: 1A
  • Thermal Resistance: 6.5°C/W
  • CRI: 80 (Typ)
  • Type: Optoelectronic component
