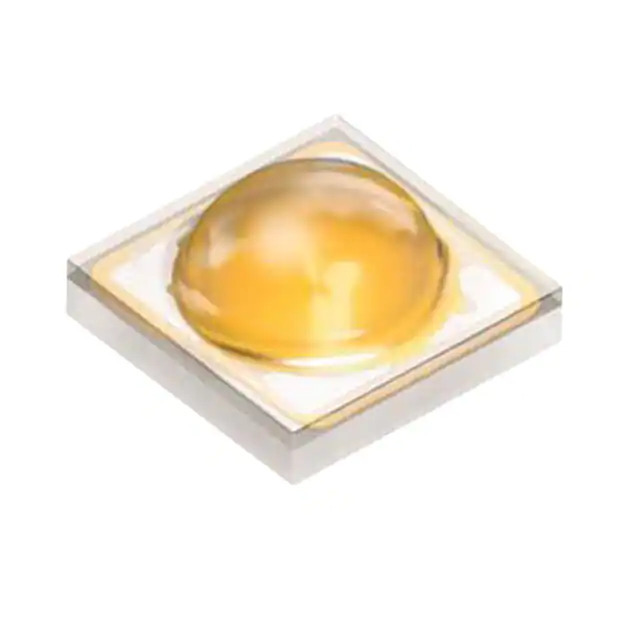

GW CSHPM1.EM-LQLS-XX55-1-350-R18 OSRAM Opto Semiconductors Inc.
Same model may have multiple batches, images only for reference.

GW CSHPM1.EM-LQLS-XX55-1-350-R18

Part No GW CSHPM1.EM-LQLS-XX55-1-350-R18
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog LED Lighting - White
Description LED OSLON NEU WHITE 4000K
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - White LED Lighting
Mfr ams-OSRAM USA INC.
Series OSLON® SSL 150
Package Tape & Reel
Product Status Active
Color White, Neutral
CCT (K) 4000K
Flux @ 85°C, Current - Test 136lm (121lm ~ 150lm)
Flux @ 25°C, Current - Test -
Current - Test 350mA
Voltage - Forward (Vf) (Typ) 2.85V
Lumens/Watt @ Current - Test 136 lm/W
CRI (Color Rendering Index) 80
Current - Max 1.3A
Viewing Angle 150°
Mounting Type Surface Mount
Package / Case 1212 (3030 Metric)
Supplier Device Package SMD
Size / Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) 0.062" (1.58mm)
Thermal Resistance of Package 5.25°C/W
Base Product Number GWCSHPM1.E
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1371942-GW CSHPM1.EM-LQLS-XX55-1-350-R18
Ultra Librarian 3D Model Ultra Librarian GW CSHPM1.EM-LQLS-XX55-1-350-R18 CAD Model

Description

The CSHPM1.EM-LQLS-XX55-1-350-R18 is a white LED lighting module manufactured by ams-OSRAM USA INC.

  • Series: OSLON SSL 150
  • Packaging: Tape & Reel (TR)
  • Package / Case: 1212 (3030 Metric)
  • Supplier Device Package: SMD
  • Size / Dimension: 0.118" L x 0.118" W (3.00mm x 3.00mm)
  • Height - Seated (Max): 0.062" (1.58mm)
  • Forward Voltage (Vf): 2.85V
  • Current - Test: 350mA
  • Viewing Angle: 150°
  • Color Temperature: 4000K
  • Flux @ Current/Temperature: 136lm @ 85°C
  • Lumens / Watt @ Current - Test: 136lm/W
  • CRI (Color Rendering Index): 80
  • Thermal Resistance: 5.25°C/W
  • Status: Active
