Same model may have multiple batches, images only for reference.

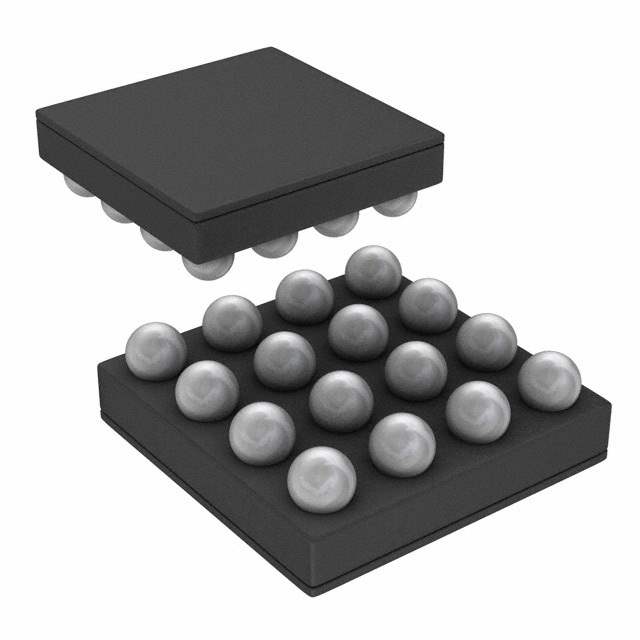

AS3561-DWLT Real Image
Same model may have multiple batches, images only for reference.

AS3561-DWLT

Part No AS3561-DWLT
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Linear - Amplifiers - Audio
Description IC AMP CLASS H STER 30MW 16WLCSP / Amplifier IC Headphones, 2-Channel (Stereo) Class H 16-WLCSP (1.62x1.62)
Datasheet
AS3561-DWLT Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Linear - Amplifiers - Audio Amplifiers
Mfr OSRAM Opto Semiconductors Inc.
Package Tape & Reel
Product Status Obsolete
Type Class H
Output Type Headphones, 2-Channel (Stereo)
Max Output Power x Channels @ Load 30mW x 2 @ 16Ohm
Voltage - Supply 2.3V ~ 5.5V
Features Differential Inputs, I2C, Short-Circuit and Thermal Protection, Shutdown, Volume Control
Mounting Type Surface Mount
Supplier Device Package 16-WLCSP (1.62x1.62)
Package / Case 16-UFBGA, WLCSP
Standard Package 6,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 911702-AS3561-DWLT
Ultra Librarian 3D Model Ultra Librarian AS3561-DWLT CAD Model

Description

The AS3561-DWLT is an audio amplifier integrated circuit (IC) manufactured by OSRAM Opto Semiconductors Inc.

  • Category: Linear Amplifiers - Audio Amplifiers
  • Type: Class H
  • Inputs: Differential
  • Interface: I2C
  • Protection Features: Short-Circuit and Thermal Protection, Shutdown, Volume Control
  • Packaging: Tape and Reel
  • Standard Package: 6,000 pieces
  • Application: Headphone Driving
  • Output Type: 2-Channel Stereo
  • Maximum Output Power: 30mW per channel @ 16 Ohms
  • Voltage Supply Range: 2.3V to 5.5V
  • Mounting Type: Surface Mount
  • Package: 16-UFBGA, WLCSP
