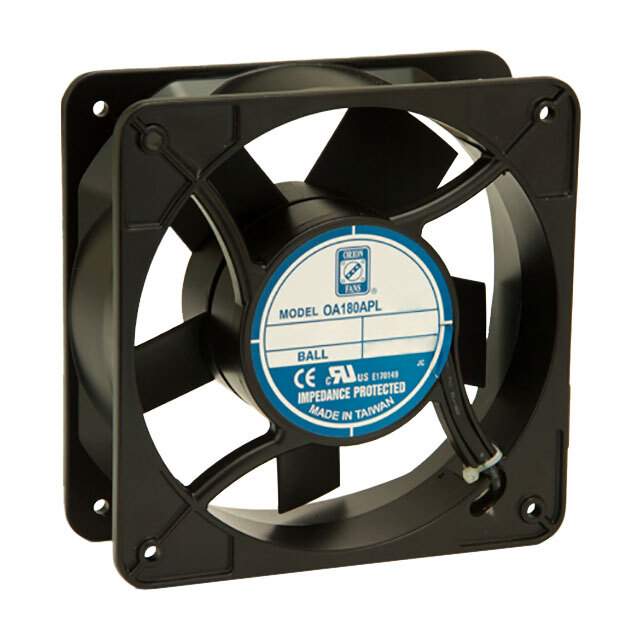

OA180APL-11-1TB Real Image
Same model may have multiple batches, images only for reference.

OA180APL-11-1TB

Part No OA180APL-11-1TB
Manufacturer Orion Fans
Catalog AC Fans
Description FAN AXIAL 180X65MM 115VAC TERM / Fan Tubeaxial 115VAC Square - 180mm L x 180mm H Ball 405.0 CFM (11.34m³/min) 2 Terminals
Datasheet
OA180APL-11-1TB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>AC Fans
Mfr Orion Fans
Series OA180APL
Package Box
Voltage - Rated 115VAC
Dimension Square - 180mm L x 180mm H
Width 65.00mm
Air Flow 405.0 CFM (11.34m³/min)
Static Pressure 0.830 in H2O (206.7 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Thermal Overload Protector (TOP)
Noise 60.0dB
Power (Watts) 70.0W
RPM 3300 RPM
Termination 2 Terminals
Temperature Range - Operating -4 ~ 176°F (-20 ~ 80°C)
Approval Agency cURus, TUV
Weight 4 lbs (1.8 kg)
Voltage Range 60 ~ 130VAC
Material - Frame Aluminum
Material - Blade Polybutylene Terephthalate (PBT)
Lifetime @ Temp. 60000 Hrs @ 40°C
Base Product Number OA180AP
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Other Names OA180APL111TB,1053-1052,OA180APL-11-1TBX
Standard Package 1
Win Source Part Number 1152308-OA180APL-11-1TB
Ultra Librarian 3D Model Ultra Librarian OA180APL-11-1TB CAD Model

Description

The OA180APL-11-1TB is an AC fan from Orion Fans.

  • Series: OA180APL
  • Features: Thermal Overload Protector (TOP)
  • Termination: 2 Terminals
  • Package: Box
  • Voltage Rated: 115VAC
  • Power: 70.0W
  • Lifetime: 60000 Hours @ 40°C
  • Voltage Range: 60 ~ 130VAC
  • Dimension: Square with 180mm L x 180mm H
  • Noise Level: 60.0dB
  • Static Pressure: 0.830 in H2O (206.7 Pa)
  • Material: Aluminum Frame and Polybutylene Terephthalate (PBT) Blade
  • Operating Temperature: -4 ~ 176°F (-20 ~ 80°C)
  • ECCN: EAR99
  • MSL: 1 (Unlimited)
  • Applications: Thermal Management and AC Fans
