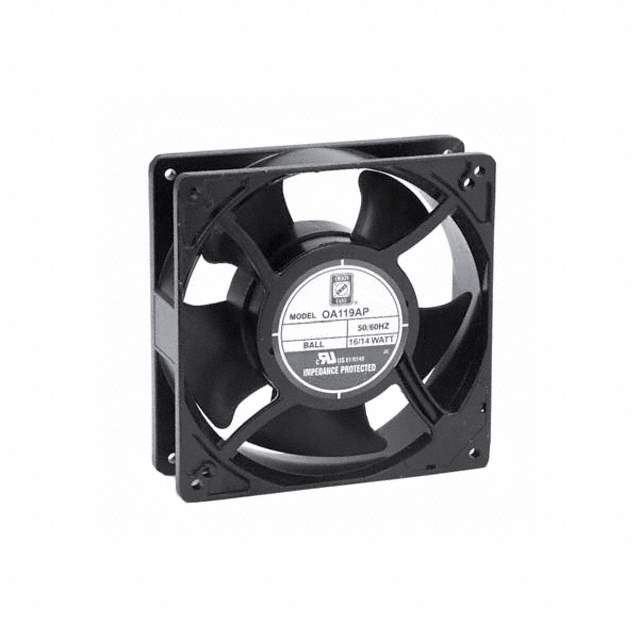

OA119AP-11-1TB Real Image
Same model may have multiple batches, images only for reference.

OA119AP-11-1TB

Part No OA119AP-11-1TB
Manufacturer Orion Fans
Catalog AC Fans
Description FAN AXIAL 127X38.5MM 115VAC TERM / Fan Tubeaxial 115VAC Square - 127mm L x 127mm H Ball 130.0 CFM (3.64m³/min) 2 Terminals
Datasheet
OA119AP-11-1TB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>AC Fans
Mfr Orion Fans
Series OA119
Package Box
Voltage - Rated 115VAC
Dimension Square - 127mm L x 127mm H
Width 38.50mm
Air Flow 130.0 CFM (3.64m³/min)
Static Pressure 0.240 in H2O (59.8 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Noise 46.0dB
Power (Watts) 14.00W
RPM 2750 RPM
Termination 2 Terminals
Temperature Range - Operating -4 ~ 176°F (-20 ~ 80°C)
Approval Agency cURus, TUV
Weight 1.3 lbs (589.7 g)
Voltage Range 80 ~ 130VAC
Material - Frame Aluminum
Material - Blade Polybutylene Terephthalate (PBT)
Lifetime @ Temp. 60000 Hrs @ 40°C
Base Product Number OA119
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Other Names 1053-1015,OA119AP111TB,OA119AP-11-1TBX
Standard Package 1
Win Source Part Number 1115311-OA119AP-11-1TB
Ultra Librarian 3D Model Ultra Librarian OA119AP-11-1TB CAD Model

Description

The OA119AP-11-1TB AC fan from Orion Fans is a tubeaxial fan with a ball bearing type and a voltage range of 80 ~ 130VAC.

  • Bearing Type: Ball
  • Voltage Range: 80 ~ 130VAC
  • Width: 38.50mm
  • Dimension: Square - 127mm L x 127mm H
  • Air Flow: 130.0 CFM (3.64m³/min)
  • Static Pressure: 0.240 in H2O (59.8 Pa)
  • Material: Aluminum
  • Noise Level: 46.0dB
  • Lifetime: 60000 Hrs @ 40°C
  • Operating Temperature Range: -4 ~ 176°F (-20 ~ 80°C)
  • Maximum RPM: 2750
  • Power: 14.00W
  • Approvals: cURus and TUV
