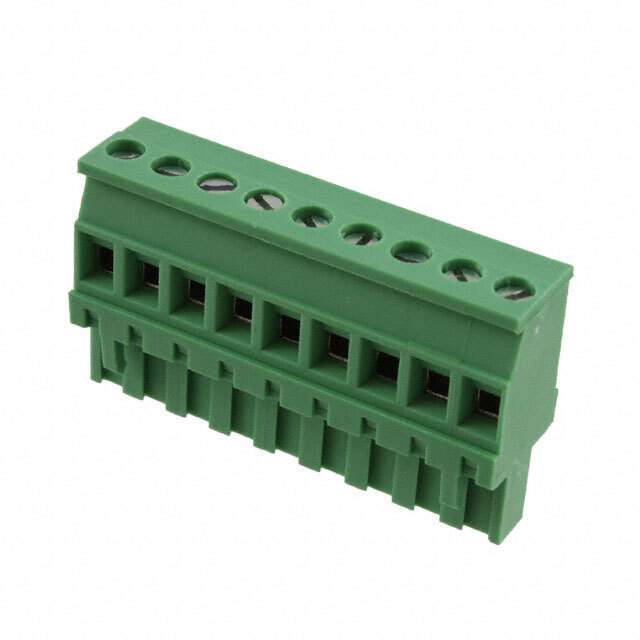

OSTTS09515A Real Image
Same model may have multiple batches, images only for reference.

OSTTS09515A

Part No OSTTS09515A
Manufacturer On Shore Technology Inc.
Catalog Headers, Plugs and Sockets
Description TERM BLOCK PLUG 9POS 5.08MM
Datasheet
OSTTS09515A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer On Shore Technology Inc.
Series OSTTS
Packaging Bulk
Type Plug, Female Sockets
Number of Positions 9
Positions Per Level 9
Number of Levels 1
Pitch 0.200" (5.08mm)
Termination Style Screw
Mounting Screw
Voltage - UL 300V
Wire Gauge or Range - AWG 12-24 AWG
Wire Gauge or Range - mm2 0.34-2.5mm2
Color Green
Operating Temperature Range -30°C ~ 105°C
Material Flammability Rating UL94 V-0
Torque - Screw 0.4 Nm (3.5 Lb-In)
Wire Strip Length 6-7mm
Contact Material Brass
Housing Material Brass
Win Source Part Number 766518-OSTTS09515A
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1
Family Name OSTTS
Introduction Date May 11, 2007
ECCN EAR99
Country of Origin China
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian OSTTS09515A CAD Model

Description

The On Shore Technology Inc. OSTTS09515A is a plug type connector with female sockets.

  • Positions: 9 per level, 9 levels
  • Pitch: 0.200" (5.08mm)
  • Voltage Rating: 300V
  • Wire Gauge: 12-24 AWG or 0.34-2.5mm2
  • Color: Green
  • Contact Material: Brass
  • Housing Material: Plastic
  • Wire Termination: Screw
  • Mounting: Screws
  • Screw Torque: 0.4 Nm (3.5 Lb-In)
  • Temperature Range: -30°C to 105°C
  • Packaging: Bulk, 1 piece per package
