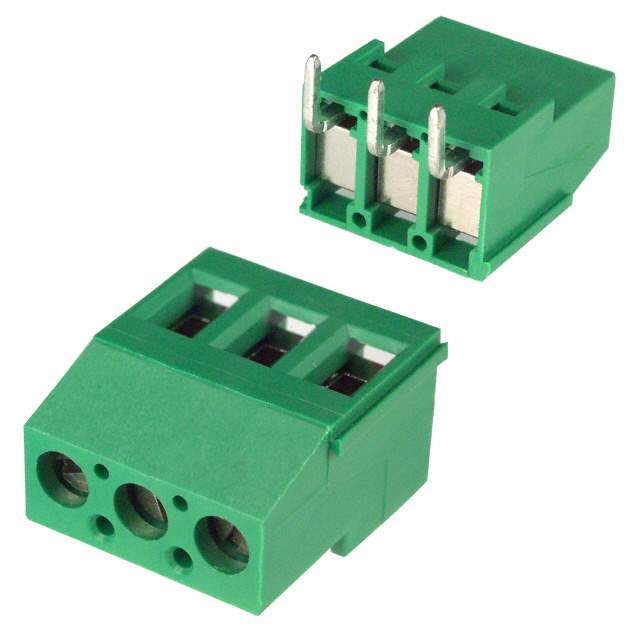

EDZ705/3 Real Image
Same model may have multiple batches, images only for reference.

EDZ705/3

Part No EDZ705/3
Manufacturer On Shore Technology Inc.
Catalog Terminal Blocks
Description TERMINAL BLOCK 5.08MM 3POS PCB
Datasheet
EDZ705/3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer On Shore Technology Inc.
Packaging Bulk
Status Active
Number of Levels 1
Positions Per Level 3
Pitch 5.08mm
Mating Orientation Vertical with Board
Current 15A
Voltage 300V
Wire Gauge 14-22 AWG
Mounting Through Hole
Wire Termination Screw - Rising Cage Clamp
Features Interlocking (Side)
Color Green
Temperature Range - Operating -30°C to 105°C
Housing Material Polyamide (PA), Nylon
Contact Material - Plating Brass
Clamp Material - Plating Copper
Screw Thread M3
Win Source Part Number 1032079-EDZ705/3
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian EDZ705/3 CAD Model

Description

The On Shore Technology Inc. EDZ705/3 is a connector with 3 positions per level and 1 level.

  • Pitch: 5.08mm
  • Wire Gauge: 14-22 AWG
  • Voltage Rating: 300V
  • Current Rating: 15A
  • Mating Orientation: Vertical
  • Wire Termination: Screw-Rising Cage Clamp
  • Supply and Demand Status: Sufficient
  • Status: Active
